Series BL-32

Price scales

QuantityDiscountUnit price
1-90% off$2.97
10-9915% off$2.52
100+25% off$2.23

Product description

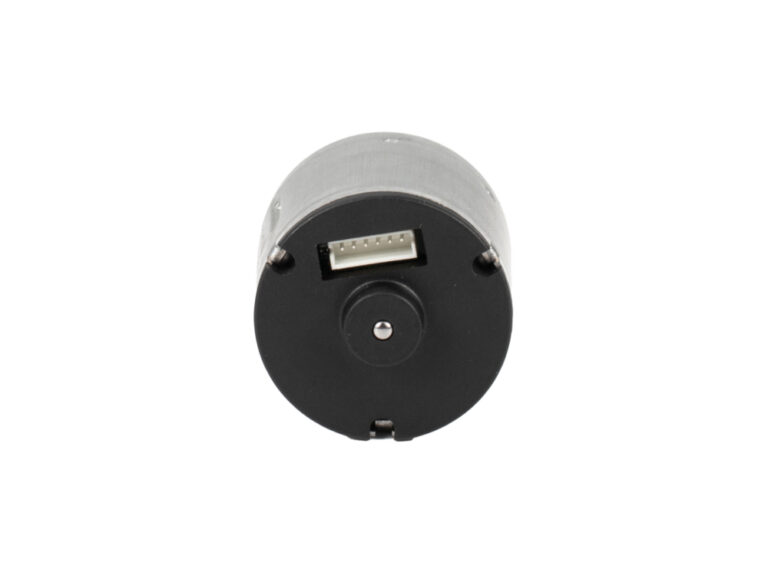

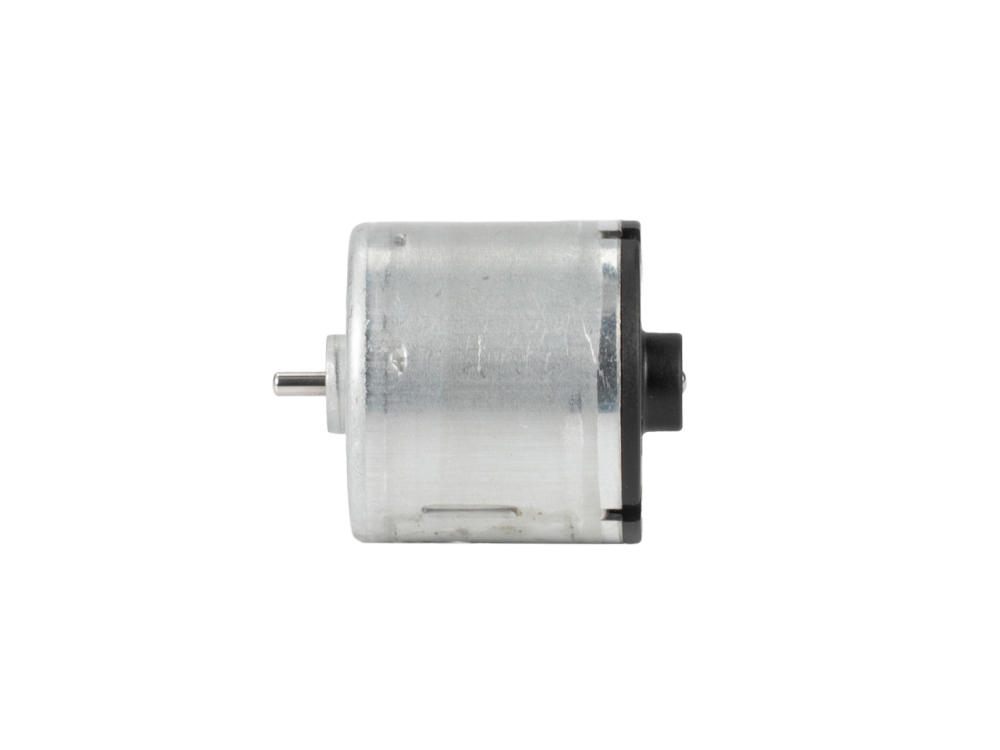

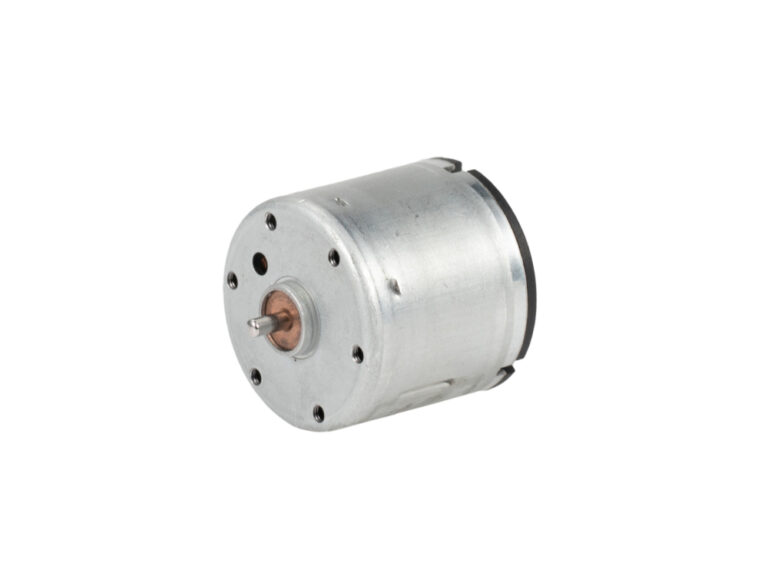

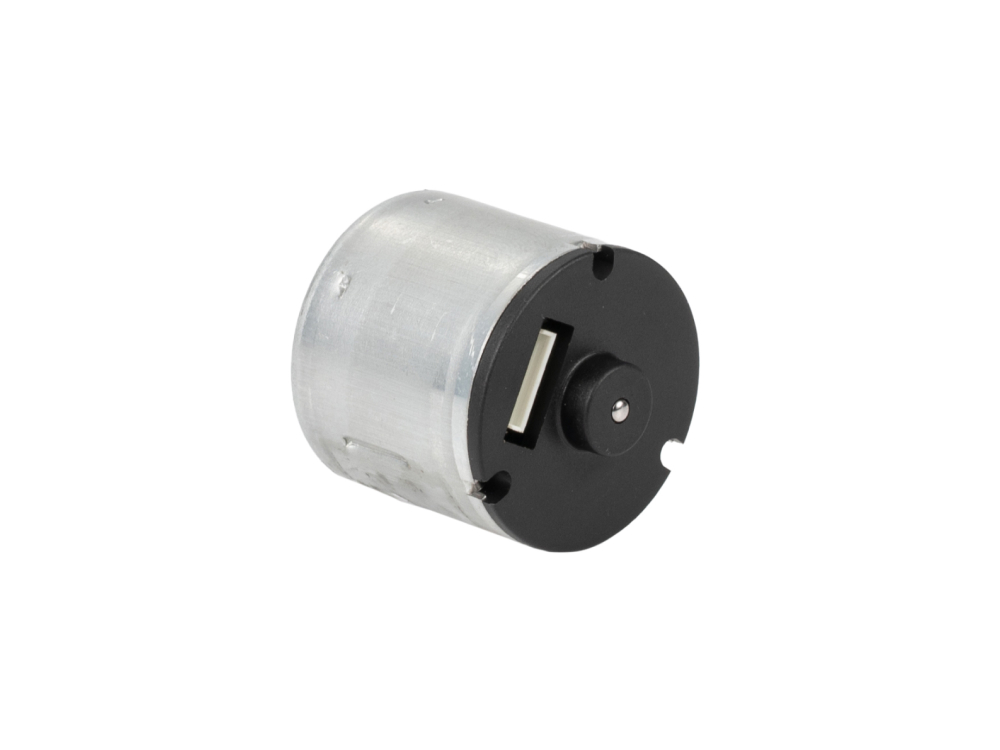

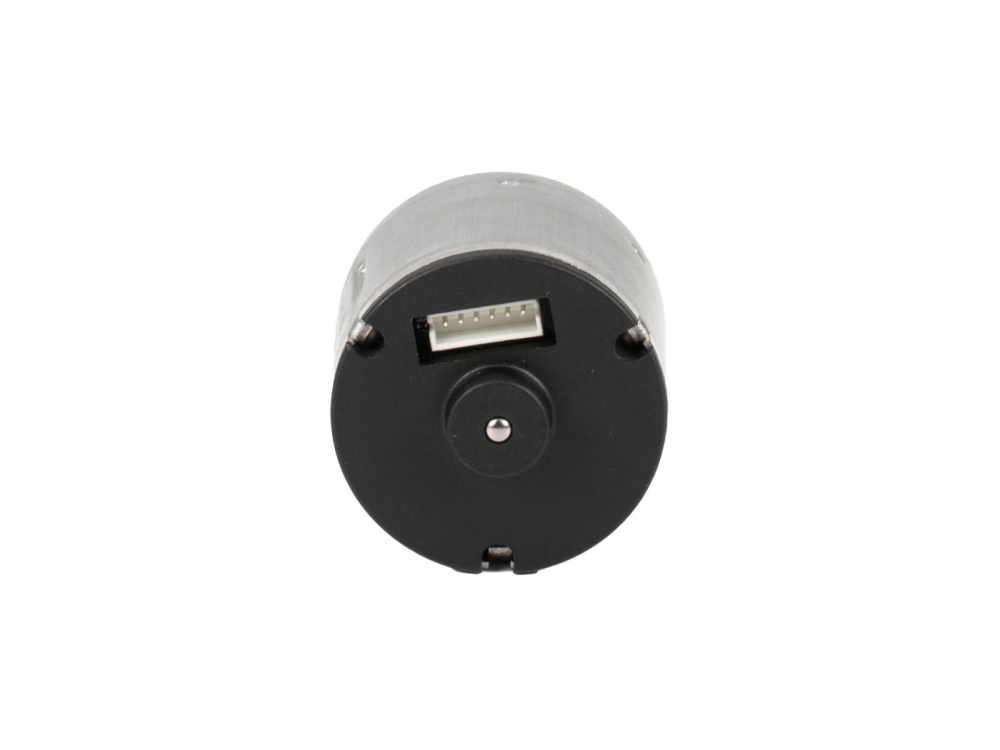

BL-32

Specifications

Value nominal voltage
Rated voltage36 V
Rated current0.42 A
Rated torque130 gf.cm
Rated speed6100
Stall torque669 gf.cm
Stall current1.4 A
No-load current90 mA
No-load speed7500
Rated power6.9 W
Max efficiency72 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationelectronically reversible
Number of pole pairs6
Number of Phase3
Magnet materialNd2Fe14B
Enameled wire materialEnameled Copper Wire
Insulating paint layerPolyurethane Enamelled Wire (UEW)
Hall SensorNo
Motor ControlSensorless Control
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight80 g
Noise Level @ 30cm54 dB
Noise Level @ 50cm49 dB
Operating temperature range-20℃-60℃
Working Lifespan5000 hours
Value nominal voltage
Rated voltage24 V
Rated current0.26 A
Rated torque78 gf.cm
Rated speed5100
Stall torque434 gf.cm
Stall current1.2 A
No-load current56 mA
No-load speed6000
Rated power4.0 W
Max efficiency69 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationelectronically reversible
Number of pole pairs6
Number of Phase3
Magnet materialNd2Fe14B
Enameled wire materialEnameled Copper Wire
Insulating paint layerPolyurethane Enamelled Wire (UEW)
Hall SensorNo
Motor ControlSensorless Control
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight78 g
Noise Level @ 30cm42 dB
Noise Level @ 50cm37 dB
Operating temperature range-20℃-60℃
Working Lifespan5000 hours
Value nominal voltage
Rated voltage18 V
Rated current0.71 A
Rated torque100 gf.cm
Rated speed6200
Stall torque571 gf.cm
Stall current2.84 A
No-load current180 mA
No-load speed7500
Rated power8.4W
Max efficiency65 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationelectronically reversible
Number of pole pairs6
Number of Phase3
Magnet materialNd2Fe14B
Enameled wire materialEnameled Copper Wire
Insulating paint layerPolyurethane Enamelled Wire (UEW)
Hall SensorNo
Motor ControlSensorless Control
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight80 g
Noise Level @ 30cm43 dB
Noise Level @ 50cm38 dB
Operating temperature range-20℃-60℃
Working Lifespan5000 hours

Technical illustrations

Dimensional Drawing

Characteristic curves
