Series TT Series
Price scales
| Quantity | Discount | Unit price |
| 1-9 | 0% off | $9.99 |
| 10-99 | 15% off | $8.49 |
| 100+ | 25% off | $7.49 |

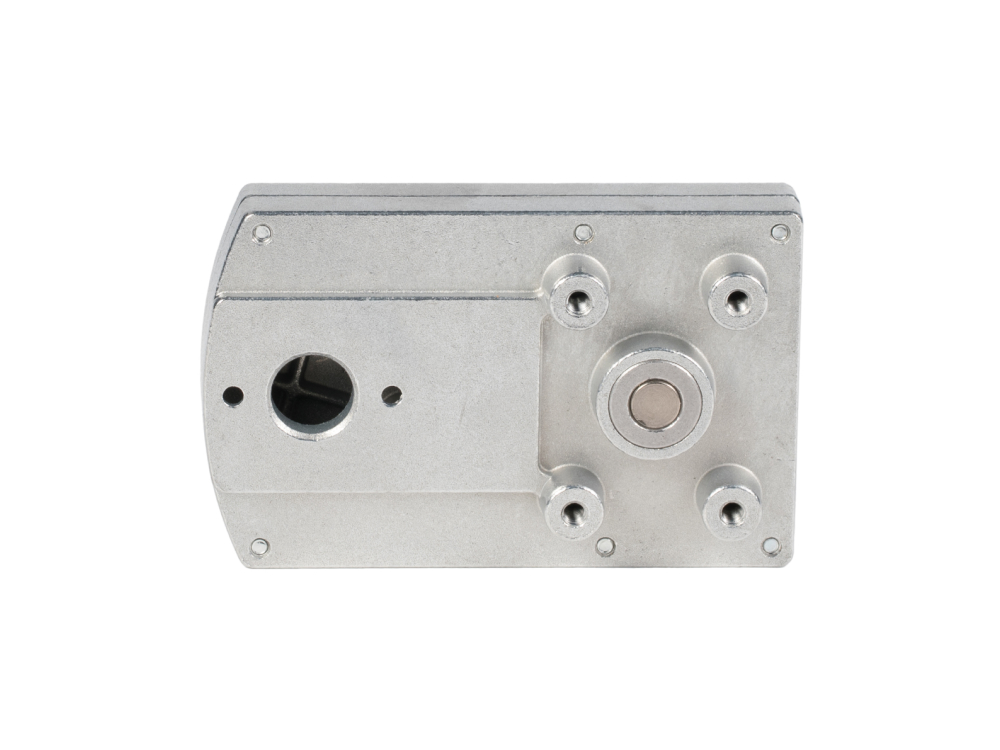

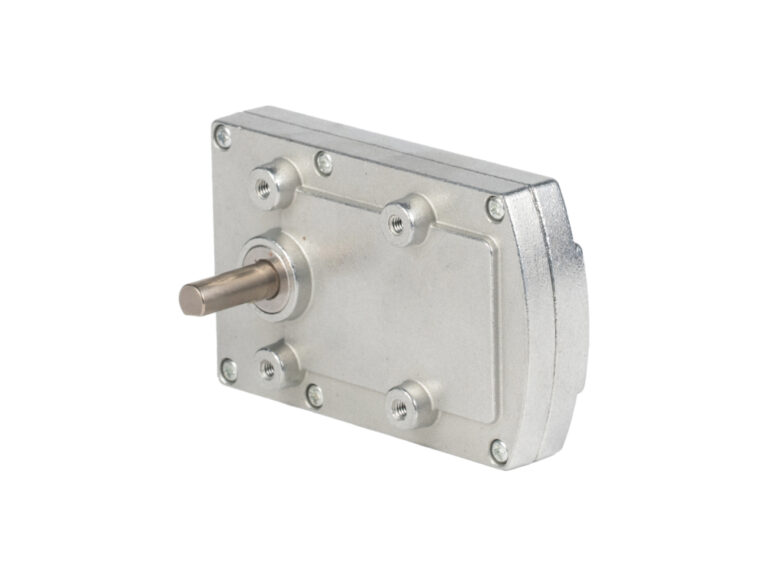

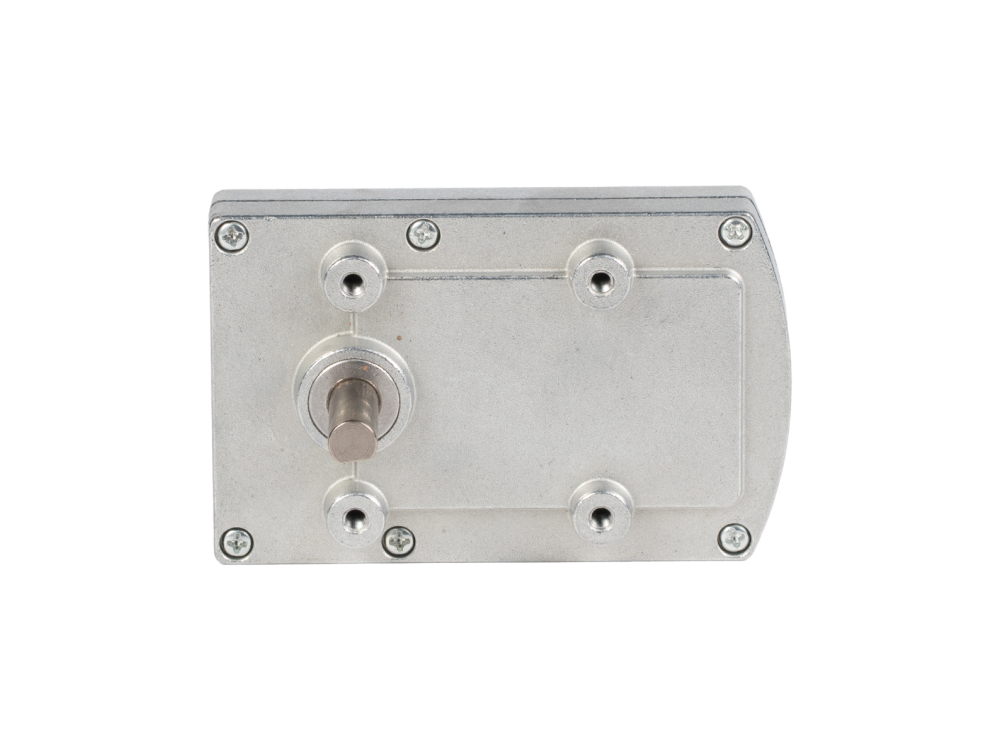

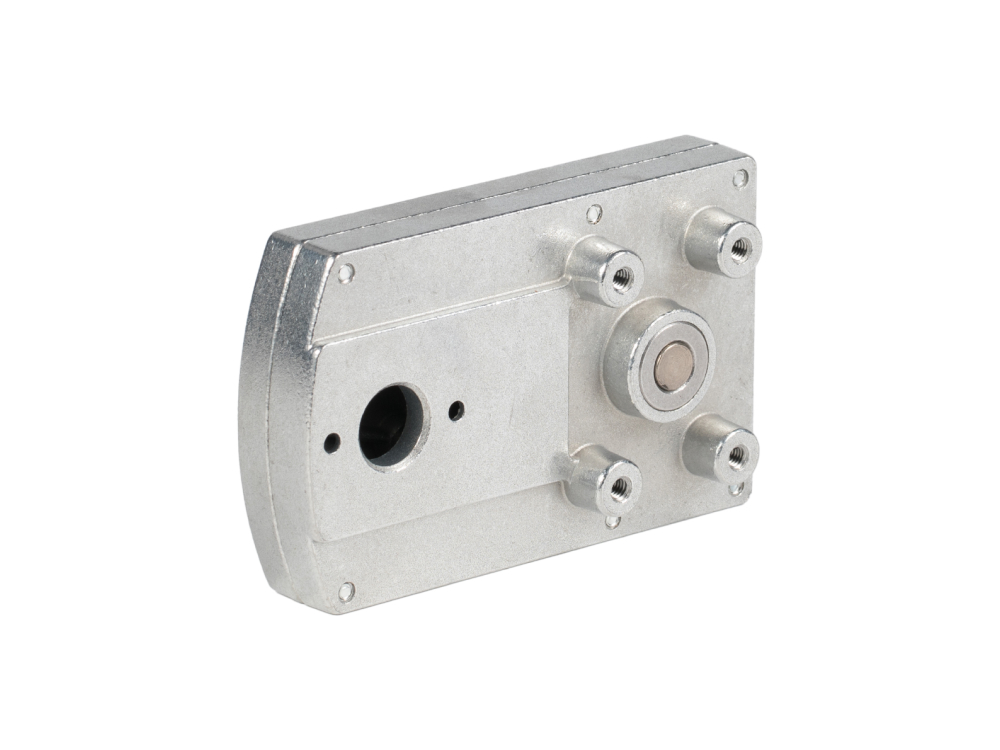

Product description
TT
Specifications
Series TT-1166Kn : 510 kgf.cm30 kgf.cm116660 mm95 mm- Series TT-830Kn : 510 kgf.cm30 kgf.cm83060 mm95 mm
- Series TT-625Kn : 510 kgf.cm30 kgf.cm62560 mm95 mm
- Series TT-395Kn : 410 kgf.cm30 kgf.cm39560 mm95 mm
- Series TT-278Kn : 410 kgf.cm30 kgf.cm27860 mm95 mm
- Series TT-211Kn : 48 kgf.cm24 kgf.cm21160 mm95 mm
- Series TT-196Kn : 48 kgf.cm24 kgf.cm19660 mm95 mm
- Series TT-149Kn : 48 kgf.cm24 kgf.cm14960 mm95 mm
- Series TT-94Kn : 38 kgf.cm24 kgf.cm9460 mm95 mm
- Series TT-66Kn : 36 kgf.cm18 kgf.cm6660 mm95 mm
- Series TT-36Kn : 33 kgf.cm9 kgf.cm3060 mm95 mm
| Gearbox Characteristic Data | |
| Model | TT Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 1166 |
| Number of gear stage | 5 |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 59 % |
| Gearbox mass | 340 g |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TT Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 830 |
| Number of gear stage | 5 |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 59 % |
| Gearbox mass | 340 g |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TT Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 625 |
| Number of gear stage | 5 |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 59 % |
| Gearbox mass | 340 g |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TT Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 395 |
| Number of gear stage | 4 |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 66 % |
| Gearbox mass | 340 g |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TT Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 278 |
| Number of gear stage | 4 |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 66 % |
| Gearbox mass | 340 g |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TT Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 211 |
| Number of gear stage | 4 |
| Max continuous torque | 8 kgf.cm |
| Instantaneous break torque | 24 kgf.cm |
| Gearbox efficiency | 66 % |
| Gearbox mass | 325 g |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TT Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 196 |
| Number of gear stage | 4 |
| Max continuous torque | 8 kgf.cm |
| Instantaneous break torque | 24 kgf.cm |
| Gearbox efficiency | 66 % |
| Gearbox mass | 325 g |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TT Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 149 |
| Number of gear stage | 4 |
| Max continuous torque | 8 kgf.cm |
| Instantaneous break torque | 24 kgf.cm |
| Gearbox efficiency | 66 % |
| Gearbox mass | 325 g |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TT Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 94 |
| Number of gear stage | 3 |
| Max continuous torque | 8 kgf.cm |
| Instantaneous break torque | 24 kgf.cm |
| Gearbox efficiency | 73 % |
| Gearbox mass | 325 g |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TT Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 66 |
| Number of gear stage | 3 |
| Max continuous torque | 6 kgf.cm |
| Instantaneous break torque | 18 kgf.cm |
| Gearbox efficiency | 73 % |
| Gearbox mass | 325 g |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TT Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 30 |
| Number of gear stage | 3 |
| Max continuous torque | 3 kgf.cm |
| Instantaneous break torque | 9 kgf.cm |
| Gearbox efficiency | 73 % |
| Gearbox mass | 325 g |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
Technical illustrations
Dimensional Drawing
Characteristic curves
Your Choice
Selected Variant
TT-1166K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 1166 |
| Diameter : | 60 mm |
| Length: | 95 mm |
Selected Variant
TT-830K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 830 |
| Diameter : | 60 mm |
| Length: | 95 mm |
Selected Variant
TT-625K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 625 |
| Diameter : | 60 mm |
| Length: | 95 mm |
Selected Variant
TT-395K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 395 |
| Diameter : | 60 mm |
| Length: | 95 mm |
Selected Variant
TT-278K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 278 |
| Diameter : | 60 mm |
| Length: | 95 mm |
Selected Variant
TT-211K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 8 kgf.cm |
| Gear breaking torque: | 24 kgf.cm |
| Gear ratio: | 211 |
| Diameter : | 60 mm |
| Length: | 95 mm |
Selected Variant
TT-196K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 8 kgf.cm |
| Gear breaking torque: | 24 kgf.cm |
| Gear ratio: | 196 |
| Diameter : | 60 mm |
| Length: | 95 mm |
Selected Variant
TT-149K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 8 kgf.cm |
| Gear breaking torque: | 24 kgf.cm |
| Gear ratio: | 149 |
| Diameter : | 60 mm |
| Length: | 95 mm |
Selected Variant
TT-94K
Key Features
| Gear stage: | n : 3 |
| Continuous input torque: | 8 kgf.cm |
| Gear breaking torque: | 24 kgf.cm |
| Gear ratio: | 94 |
| Diameter : | 60 mm |
| Length: | 95 mm |
Selected Variant
TT-66K
Key Features
| Gear stage: | n : 3 |
| Continuous input torque: | 6 kgf.cm |
| Gear breaking torque: | 18 kgf.cm |
| Gear ratio: | 66 |
| Diameter : | 60 mm |
| Length: | 95 mm |
Selected Variant
TT-36K
Key Features
| Gear stage: | n : 3 |
| Continuous input torque: | 3 kgf.cm |
| Gear breaking torque: | 9 kgf.cm |
| Gear ratio: | 30 |
| Diameter : | 60 mm |
| Length: | 95 mm |
