Series TG-40
Price scales
| Quantity | Discount | Unit price |
| 1-9 | 0% off | $4.99 |
| 10-99 | 15% off | $4.24 |
| 100+ | 25% off | $3.74 |
Product description

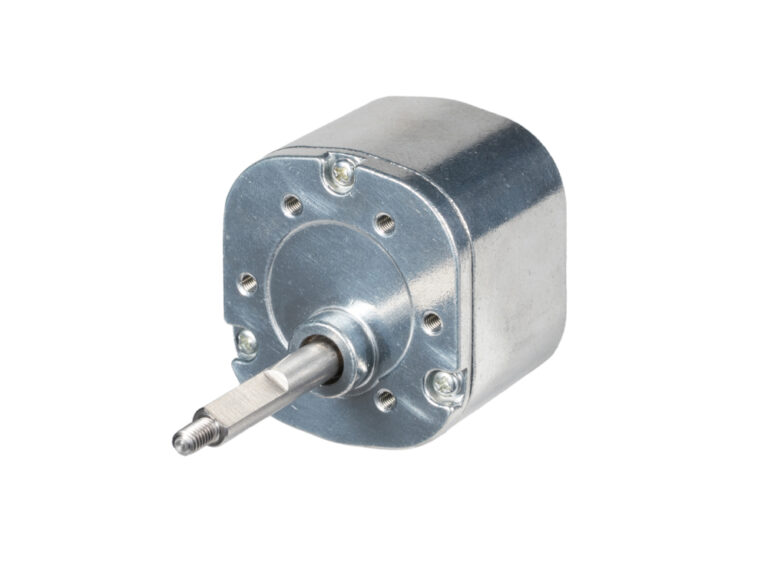

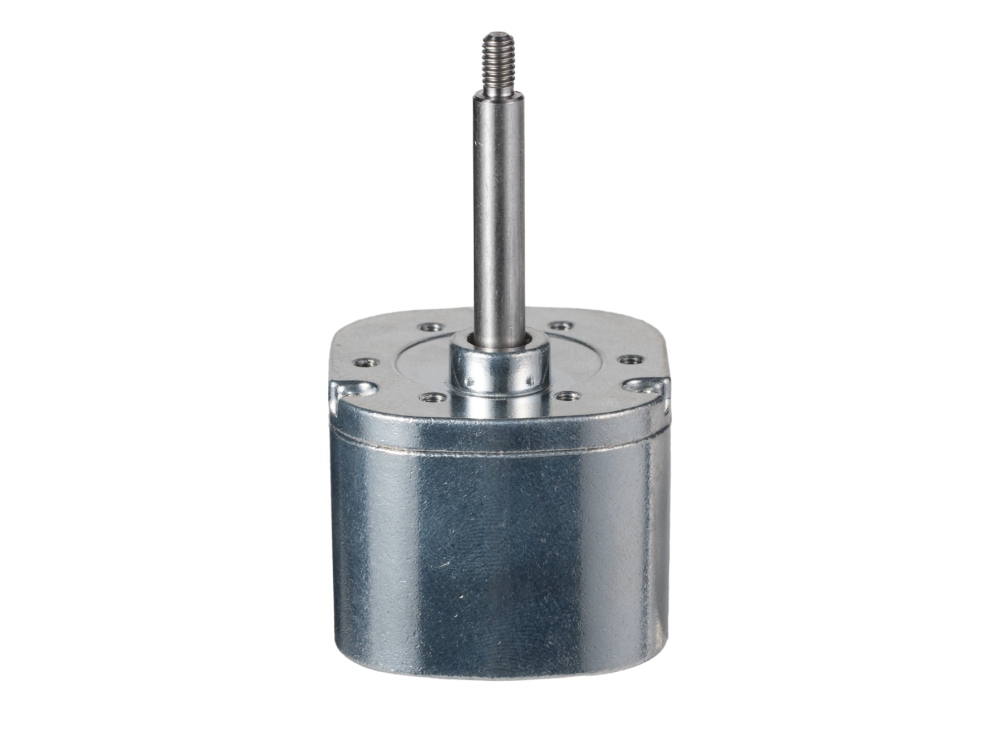

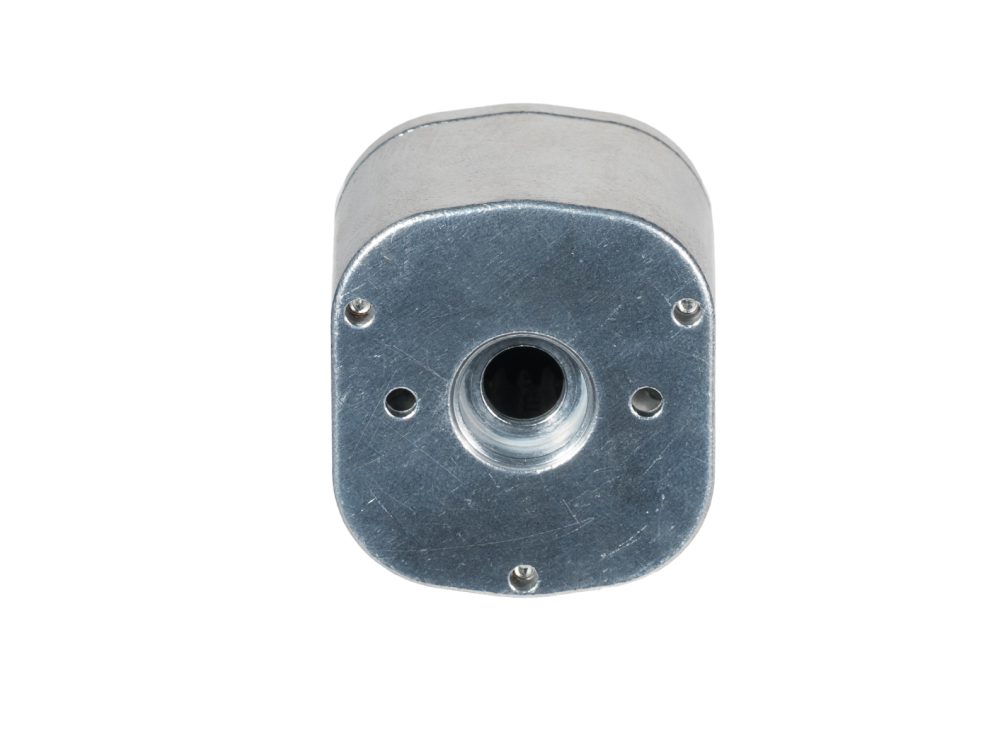

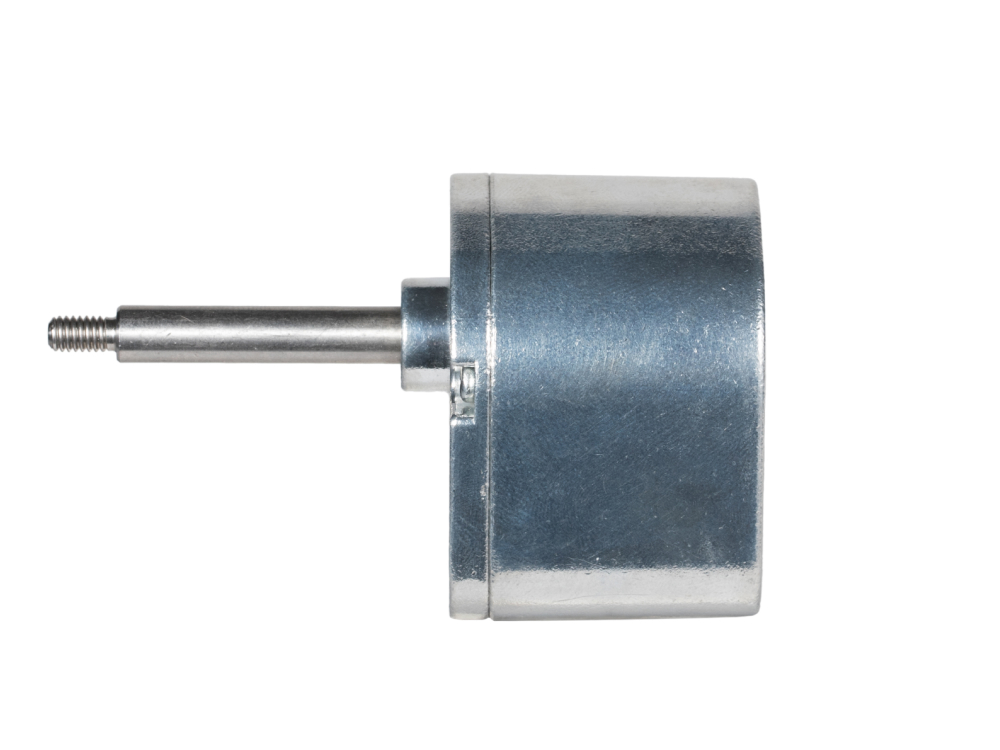

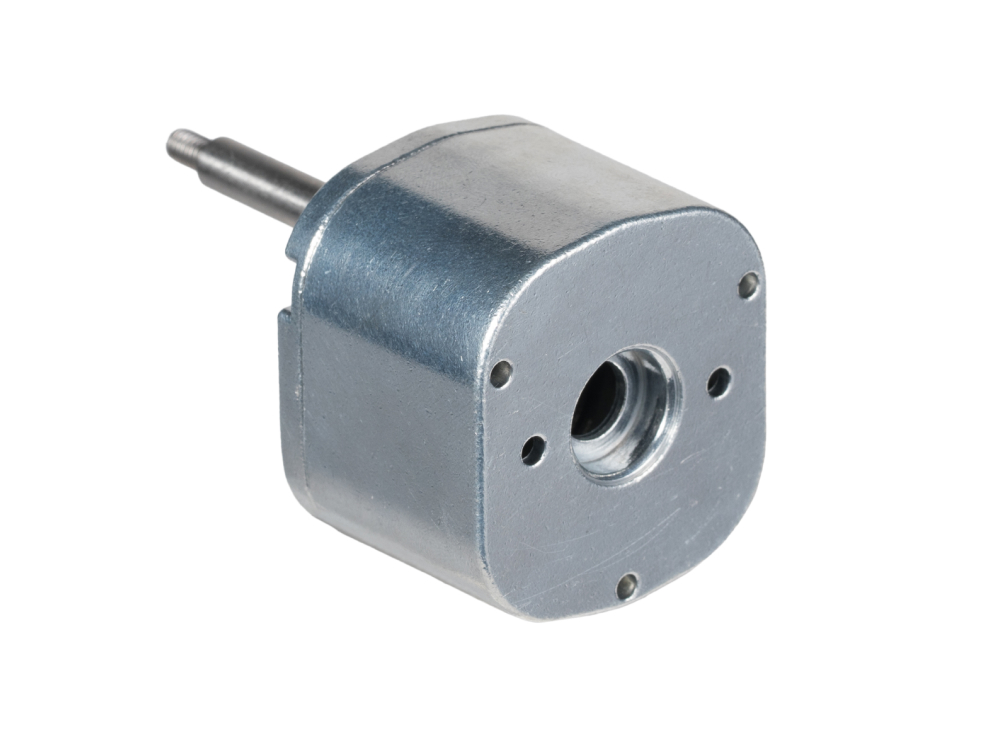

TG-40
Specifications
Series TG40-1666.2Kn : 715 kgf.cm45 kgf.cm1666.240 mm32 mm- Series TG40-1201.6Kn : 715 kgf.cm45 kgf.cm1201.640 mm32 mm
- Series TG40-847.3Kn : 715 kgf.cm45 kgf.cm847.340 mm32 mm
- Series TG40-462.8Kn : 615 kgf.cm45 kgf.cm462.840 mm32 mm
- Series TG40-333.8Kn : 615 kgf.cm45 kgf.cm333.840 mm32 mm
- Series TG40-235.4Kn : 610 kgf.cm30 kgf.cm235.440 mm32 mm
- Series TG40-128.6Kn : 58 kgf.cm24 kgf.cm128.640 mm32 mm
- Series TG40-92.7Kn : 58 kgf.cm24 kgf.cm92.740 mm32 mm
- Series TG40-65.4Kn : 58 kgf.cm24 kgf.cm65.440 mm32 mm
- Series TG40-35.7Kn : 45 kgf.cm15 kgf.cm35.740 mm32 mm
- Series TG40-25.8Kn : 45 kgf.cm15 kgf.cm25.840 mm32 mm
- Series TG40-14.4Kn : 33 kgf.cm9 kgf.cm14.440 mm32 mm
- Series TG40-10Kn : 33 kgf.cm9 kgf.cm1040 mm32 mm
| Gearbox Characteristic Data | |
| Model | TG-40 40mm Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 3.0 kgf |
| Radial load | ≤ 2.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.05 mm |
| Backlash at no-load | ≤ 2° |
| Gear module | 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 1666.2 |
| Number of gear stage | 7 |
| Gearbox length | 32 mm |
| Max continuous torque | 15 kgf.cm |
| Instantaneous break torque | 45 kgf.cm |
| Gearbox efficiency | 50 % |
| Gearbox mass | |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TG-40 40mm Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 3.0 kgf |
| Radial load | ≤ 2.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.05 mm |
| Backlash at no-load | ≤ 2° |
| Gear module | 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 1201.6 |
| Number of gear stage | 7 |
| Gearbox length | 32 mm |
| Max continuous torque | 15 kgf.cm |
| Instantaneous break torque | 45 kgf.cm |
| Gearbox efficiency | 50 % |
| Gearbox mass | |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TG-40 40mm Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 3.0 kgf |
| Radial load | ≤ 2.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.05 mm |
| Backlash at no-load | ≤ 2° |
| Gear module | 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 847.3 |
| Number of gear stage | 7 |
| Gearbox length | 32 mm |
| Max continuous torque | 15 kgf.cm |
| Instantaneous break torque | 45 kgf.cm |
| Gearbox efficiency | 50 % |
| Gearbox mass | |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TG-40 40mm Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 3.0 kgf |
| Radial load | ≤ 2.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.05 mm |
| Backlash at no-load | ≤ 2° |
| Gear module | 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 462.8 |
| Number of gear stage | 6 |
| Gearbox length | 32 mm |
| Max continuous torque | 15 kgf.cm |
| Instantaneous break torque | 45 kgf.cm |
| Gearbox efficiency | 59 % |
| Gearbox mass | |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TG-40 40mm Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 3.0 kgf |
| Radial load | ≤ 2.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.05 mm |
| Backlash at no-load | ≤ 2° |
| Gear module | 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 333.8 |
| Number of gear stage | 6 |
| Gearbox length | 32 mm |
| Max continuous torque | 15 kgf.cm |
| Instantaneous break torque | 45 kgf.cm |
| Gearbox efficiency | 59 % |
| Gearbox mass | |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TG-40 40mm Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 3.0 kgf |
| Radial load | ≤ 2.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.05 mm |
| Backlash at no-load | ≤ 2° |
| Gear module | 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 235.4 |
| Number of gear stage | 6 |
| Gearbox length | 32 mm |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 59 % |
| Gearbox mass | |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TG-40 40mm Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 3.0 kgf |
| Radial load | ≤ 2.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.05 mm |
| Backlash at no-load | ≤ 2° |
| Gear module | 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 128.6 |
| Number of gear stage | 5 |
| Gearbox length | 32 mm |
| Max continuous torque | 8 kgf.cm |
| Instantaneous break torque | 24 kgf.cm |
| Gearbox efficiency | 65 % |
| Gearbox mass | |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TG-40 40mm Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 3.0 kgf |
| Radial load | ≤ 2.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.05 mm |
| Backlash at no-load | ≤ 2° |
| Gear module | 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 92.7 |
| Number of gear stage | 5 |
| Gearbox length | 32 mm |
| Max continuous torque | 8 kgf.cm |
| Instantaneous break torque | 24 kgf.cm |
| Gearbox efficiency | 65 % |
| Gearbox mass | |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TG-40 40mm Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 3.0 kgf |
| Radial load | ≤ 2.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.05 mm |
| Backlash at no-load | ≤ 2° |
| Gear module | 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 65.4 |
| Number of gear stage | 5 |
| Gearbox length | 32 mm |
| Max continuous torque | 8 kgf.cm |
| Instantaneous break torque | 24 kgf.cm |
| Gearbox efficiency | 65 % |
| Gearbox mass | |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TG-40 40mm Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 3.0 kgf |
| Radial load | ≤ 2.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.05 mm |
| Backlash at no-load | ≤ 2° |
| Gear module | 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 35.7 |
| Number of gear stage | 4 |
| Gearbox length | 32 mm |
| Max continuous torque | 5 kgf.cm |
| Instantaneous break torque | 15 kgf.cm |
| Gearbox efficiency | 73 % |
| Gearbox mass | |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TG-40 40mm Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 3.0 kgf |
| Radial load | ≤ 2.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.05 mm |
| Backlash at no-load | ≤ 2° |
| Gear module | 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 25.8 |
| Number of gear stage | 4 |
| Gearbox length | 32 mm |
| Max continuous torque | 5 kgf.cm |
| Instantaneous break torque | 15 kgf.cm |
| Gearbox efficiency | 73 % |
| Gearbox mass | |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TG-40 40mm Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 3.0 kgf |
| Radial load | ≤ 2.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.05 mm |
| Backlash at no-load | ≤ 2° |
| Gear module | 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 14.4 |
| Number of gear stage | 3 |
| Gearbox length | 32 mm |
| Max continuous torque | 3 kgf.cm |
| Instantaneous break torque | 9 kgf.cm |
| Gearbox efficiency | 81 % |
| Gearbox mass | |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TG-40 40mm Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 3.0 kgf |
| Radial load | ≤ 2.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.05 mm |
| Backlash at no-load | ≤ 2° |
| Gear module | 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 10 |
| Number of gear stage | 3 |
| Gearbox length | 32 mm |
| Max continuous torque | 3 kgf.cm |
| Instantaneous break torque | 9 kgf.cm |
| Gearbox efficiency | 81 % |
| Gearbox mass | |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
Technical illustrations
Dimensional Drawing
Characteristic curves
Your Choice
Selected Variant
TG40-1666.2K
Key Features
| Gear stage: | n : 7 |
| Continuous input torque: | 15 kgf.cm |
| Gear breaking torque: | 45 kgf.cm |
| Gear ratio: | 1666.2 |
| Diameter : | 40 mm |
| Length: | 32 mm |
Selected Variant
TG40-1201.6K
Key Features
| Gear stage: | n : 7 |
| Continuous input torque: | 15 kgf.cm |
| Gear breaking torque: | 45 kgf.cm |
| Gear ratio: | 1201.6 |
| Diameter : | 40 mm |
| Length: | 32 mm |
Selected Variant
TG40-847.3K
Key Features
| Gear stage: | n : 7 |
| Continuous input torque: | 15 kgf.cm |
| Gear breaking torque: | 45 kgf.cm |
| Gear ratio: | 847.3 |
| Diameter : | 40 mm |
| Length: | 32 mm |
Selected Variant
TG40-462.8K
Key Features
| Gear stage: | n : 6 |
| Continuous input torque: | 15 kgf.cm |
| Gear breaking torque: | 45 kgf.cm |
| Gear ratio: | 462.8 |
| Diameter : | 40 mm |
| Length: | 32 mm |
Selected Variant
TG40-333.8K
Key Features
| Gear stage: | n : 6 |
| Continuous input torque: | 15 kgf.cm |
| Gear breaking torque: | 45 kgf.cm |
| Gear ratio: | 333.8 |
| Diameter : | 40 mm |
| Length: | 32 mm |
Selected Variant
TG40-235.4K
Key Features
| Gear stage: | n : 6 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 235.4 |
| Diameter : | 40 mm |
| Length: | 32 mm |
Selected Variant
TG40-128.6K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 8 kgf.cm |
| Gear breaking torque: | 24 kgf.cm |
| Gear ratio: | 128.6 |
| Diameter : | 40 mm |
| Length: | 32 mm |
Selected Variant
TG40-92.7K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 8 kgf.cm |
| Gear breaking torque: | 24 kgf.cm |
| Gear ratio: | 92.7 |
| Diameter : | 40 mm |
| Length: | 32 mm |
Selected Variant
TG40-65.4K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 8 kgf.cm |
| Gear breaking torque: | 24 kgf.cm |
| Gear ratio: | 65.4 |
| Diameter : | 40 mm |
| Length: | 32 mm |
Selected Variant
TG40-35.7K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 5 kgf.cm |
| Gear breaking torque: | 15 kgf.cm |
| Gear ratio: | 35.7 |
| Diameter : | 40 mm |
| Length: | 32 mm |
Selected Variant
TG40-25.8K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 5 kgf.cm |
| Gear breaking torque: | 15 kgf.cm |
| Gear ratio: | 25.8 |
| Diameter : | 40 mm |
| Length: | 32 mm |
Selected Variant
TG40-14.4K
Key Features
| Gear stage: | n : 3 |
| Continuous input torque: | 3 kgf.cm |
| Gear breaking torque: | 9 kgf.cm |
| Gear ratio: | 14.4 |
| Diameter : | 40 mm |
| Length: | 32 mm |
Selected Variant
TG40-10K
Key Features
| Gear stage: | n : 3 |
| Continuous input torque: | 3 kgf.cm |
| Gear breaking torque: | 9 kgf.cm |
| Gear ratio: | 10 |
| Diameter : | 40 mm |
| Length: | 32 mm |
