Series TA Series
Price scales
| Quantity | Discount | Unit price |
| 1-9 | 0% off | $9.99 |
| 10-99 | 15% off | $8.49 |
| 100+ | 25% off | $7.49 |
Product description

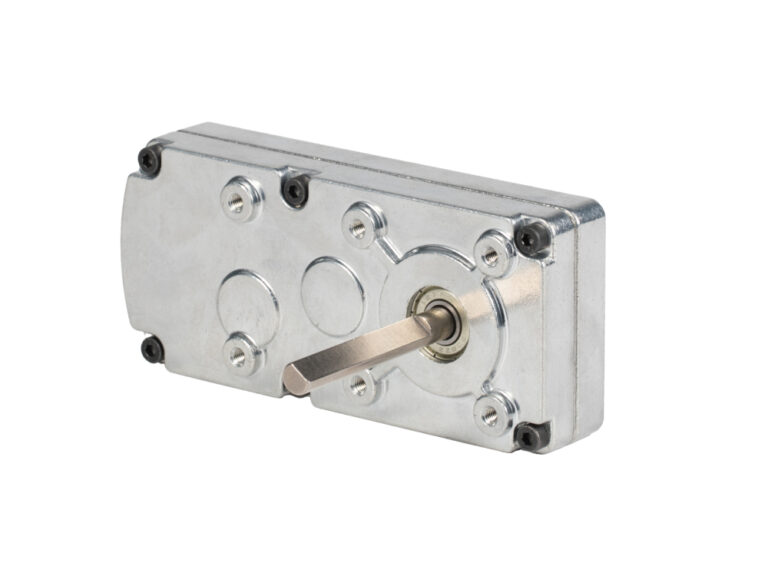

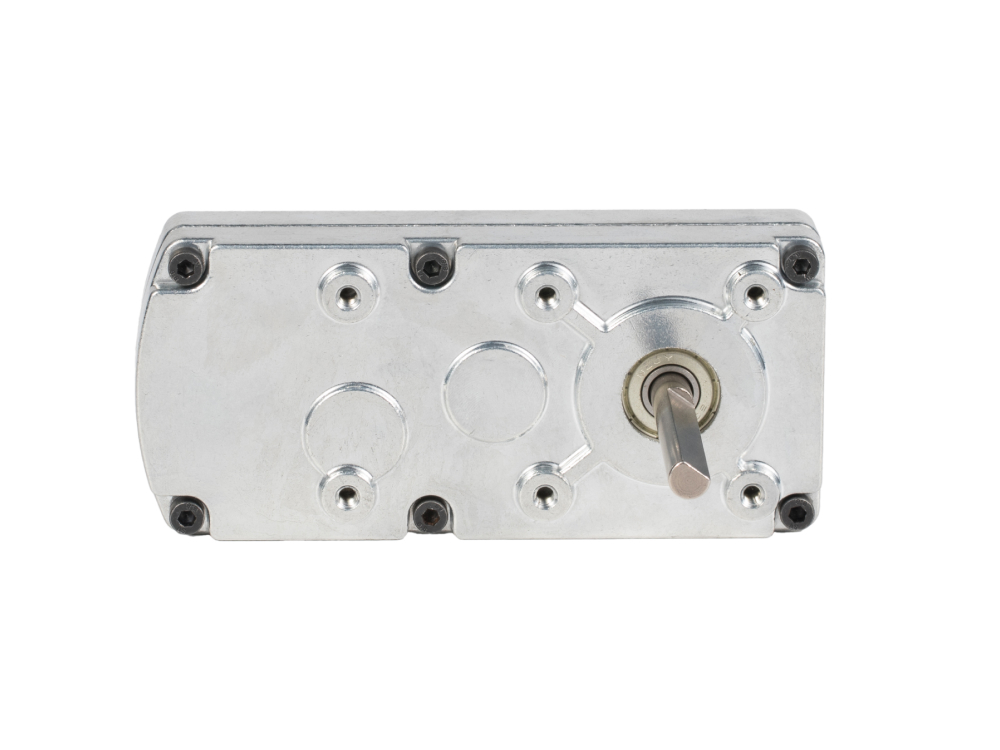

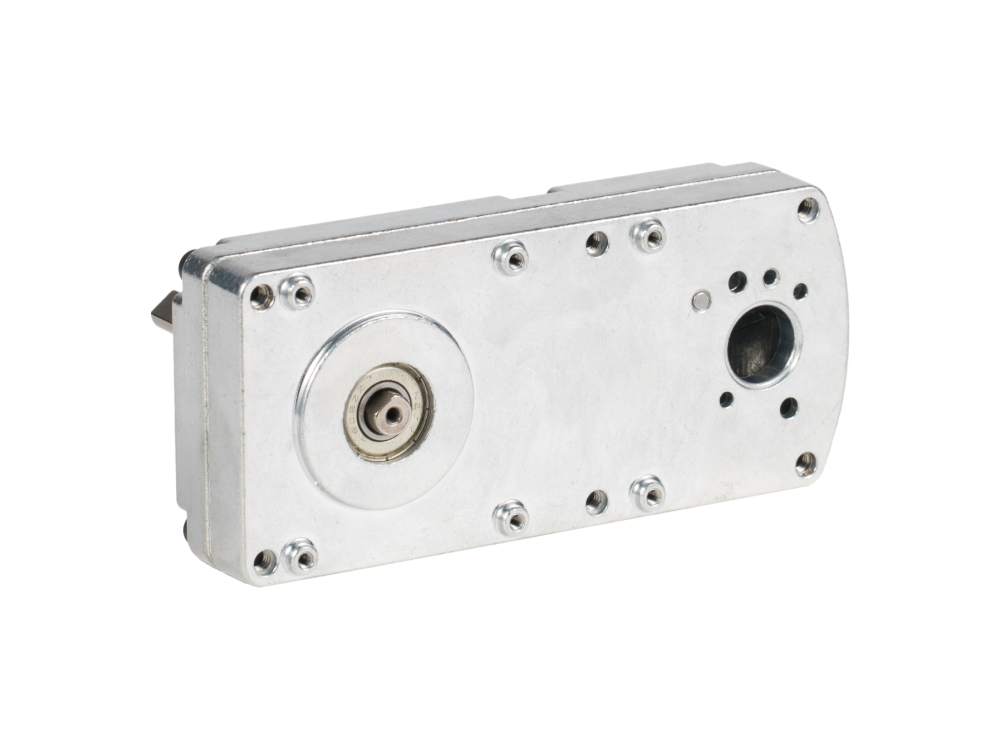

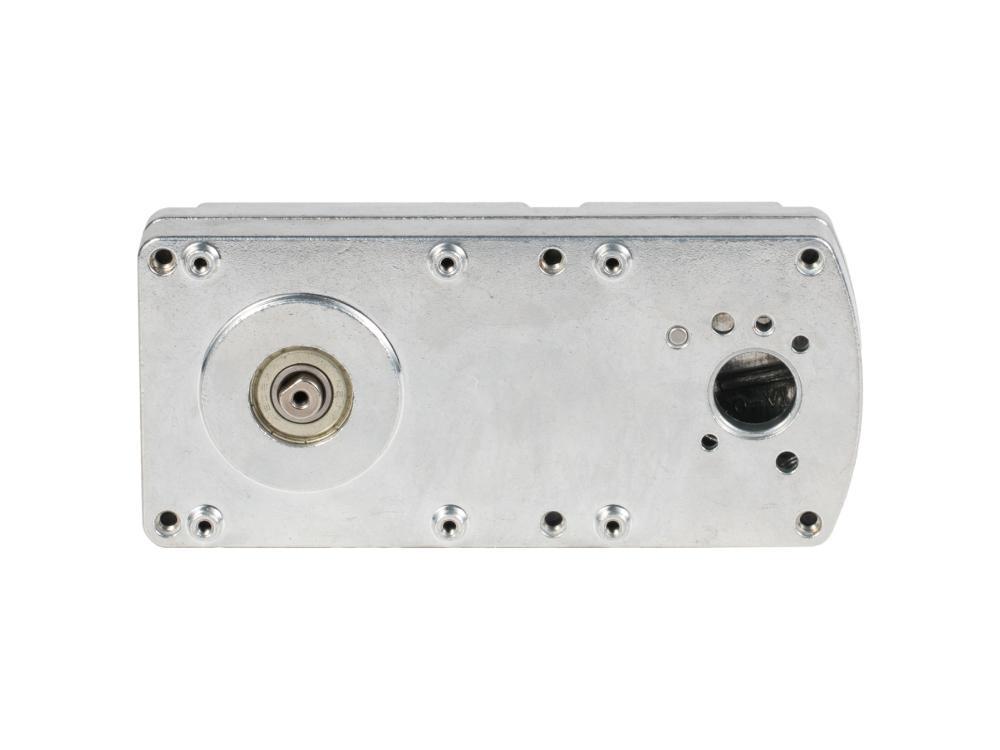

TA
Specifications
Series TA-777Kn : 5300 kgf.cm1000 kgf.cm77760 mm133 mm- Series TA-568.3Kn : 5300 kgf.cm1000 kgf.cm568.360 mm133 mm
- Series TA-304.4Kn : 5300 kgf.cm1000 kgf.cm304.460 mm133 mm
- Series TA-148.6Kn : 4300 kgf.cm1000 kgf.cm148.660 mm133 mm
- Series TA-94Kn : 4300 kgf.cm1000 kgf.cm9460 mm133 mm
- Series TA-35Kn : 3150 kgf.cm500 kgf.cm3560 mm133 mm
| Gearbox Characteristic Data | |
| Model | TA Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.8 M / 1 M / 1.25 M |
| Gearbox Value | |
| Gear ratio | 777 |
| Number of gear stage | 5 |
| Max continuous torque | 300 kgf.cm |
| Instantaneous break torque | 1000 kgf.cm |
| Gearbox efficiency | 65 % |
| Gearbox mass | |
| Output shaft diameter | 8 ... 25 mm |
| Pinion hole diameter | φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TA Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.8 M / 1 M / 1.25 M |
| Gearbox Value | |
| Gear ratio | 568.3 |
| Number of gear stage | 5 |
| Max continuous torque | 300 kgf.cm |
| Instantaneous break torque | 1000 kgf.cm |
| Gearbox efficiency | 65 % |
| Gearbox mass | |
| Output shaft diameter | 8 ... 25 mm |
| Pinion hole diameter | φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TA Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.8 M / 1 M / 1.25 M |
| Gearbox Value | |
| Gear ratio | 304.4 |
| Number of gear stage | 5 |
| Max continuous torque | 300 kgf.cm |
| Instantaneous break torque | 1000 kgf.cm |
| Gearbox efficiency | 65 % |
| Gearbox mass | |
| Output shaft diameter | 8 ... 25 mm |
| Pinion hole diameter | φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TA Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.8 M / 1 M / 1.25 M |
| Gearbox Value | |
| Gear ratio | 148.6 |
| Number of gear stage | 4 |
| Max continuous torque | 300 kgf.cm |
| Instantaneous break torque | 1000 kgf.cm |
| Gearbox efficiency | 73 % |
| Gearbox mass | |
| Output shaft diameter | 8 ... 25 mm |
| Pinion hole diameter | φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TA Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.8 M / 1 M / 1.25 M |
| Gearbox Value | |
| Gear ratio | 94 |
| Number of gear stage | 4 |
| Max continuous torque | 300 kgf.cm |
| Instantaneous break torque | 1000 kgf.cm |
| Gearbox efficiency | 73 % |
| Gearbox mass | |
| Output shaft diameter | 8 ... 25 mm |
| Pinion hole diameter | φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | TA Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Steel |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.8 M / 1 M / 1.25 M |
| Gearbox Value | |
| Gear ratio | 35 |
| Number of gear stage | 3 |
| Max continuous torque | 150 kgf.cm |
| Instantaneous break torque | 500 kgf.cm |
| Gearbox efficiency | 81 % |
| Gearbox mass | |
| Output shaft diameter | 8 ... 20 mm |
| Pinion hole diameter | φ 2.5 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
Technical illustrations
Dimensional Drawing
Characteristic curves
Your Choice
Selected Variant
TA-777K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 300 kgf.cm |
| Gear breaking torque: | 1000 kgf.cm |
| Gear ratio: | 777 |
| Width: | 60 mm |
| Length: | 133 mm |
Selected Variant
TA-568.3K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 300 kgf.cm |
| Gear breaking torque: | 1000 kgf.cm |
| Gear ratio: | 568.3 |
| Width: | 60 mm |
| Length: | 133 mm |
Selected Variant
TA-304.4K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 300 kgf.cm |
| Gear breaking torque: | 1000 kgf.cm |
| Gear ratio: | 304.4 |
| Width: | 60 mm |
| Length: | 133 mm |
Selected Variant
TA-148.6K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 300 kgf.cm |
| Gear breaking torque: | 1000 kgf.cm |
| Gear ratio: | 148.6 |
| Width: | 60 mm |
| Length: | 133 mm |
Selected Variant
TA-94K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 300 kgf.cm |
| Gear breaking torque: | 1000 kgf.cm |
| Gear ratio: | 94 |
| Width: | 60 mm |
| Length: | 133 mm |
Selected Variant
TA-35K
Key Features
| Gear stage: | n : 3 |
| Continuous input torque: | 150 kgf.cm |
| Gear breaking torque: | 500 kgf.cm |
| Gear ratio: | 35 |
| Width: | 60 mm |
| Length: | 133 mm |
