Series PG32
Price scales
| Quantity | Discount | Unit price |
| 1-9 | 0% off | $14.9 |
| 10-99 | 15% off | $12.6 |
| 100+ | 25% off | $11.2 |
Product description

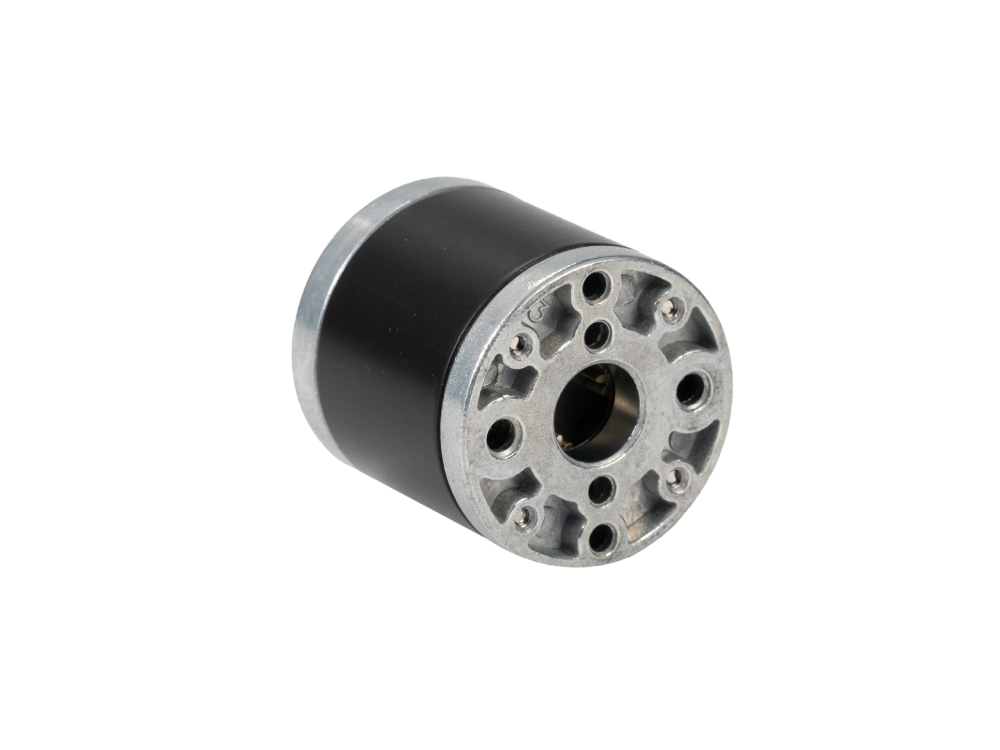

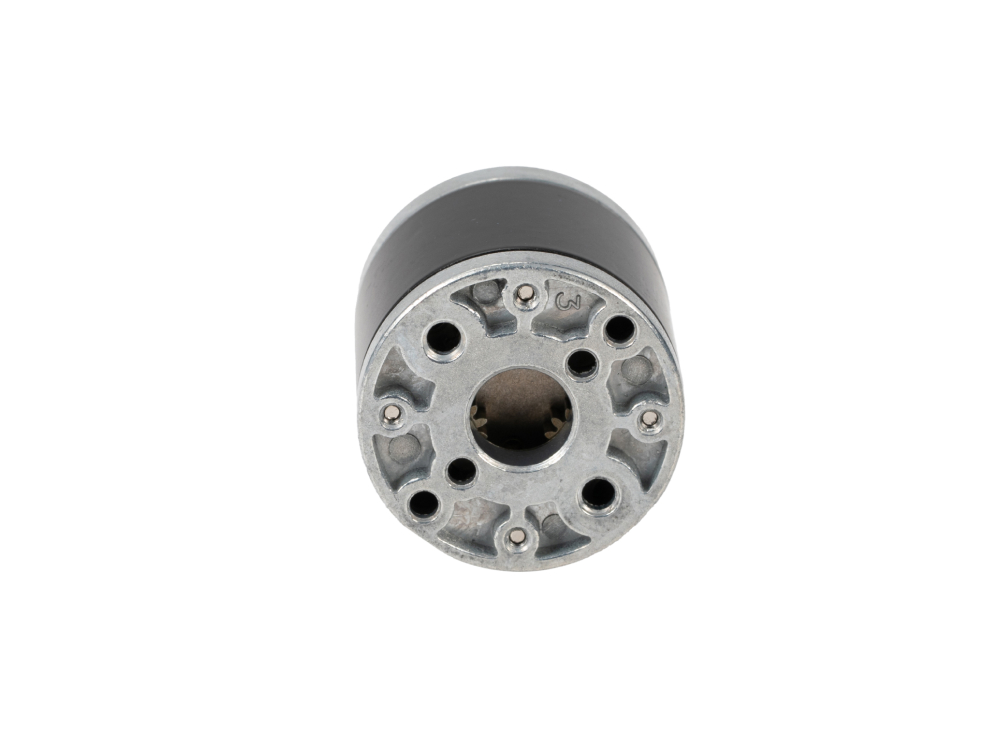

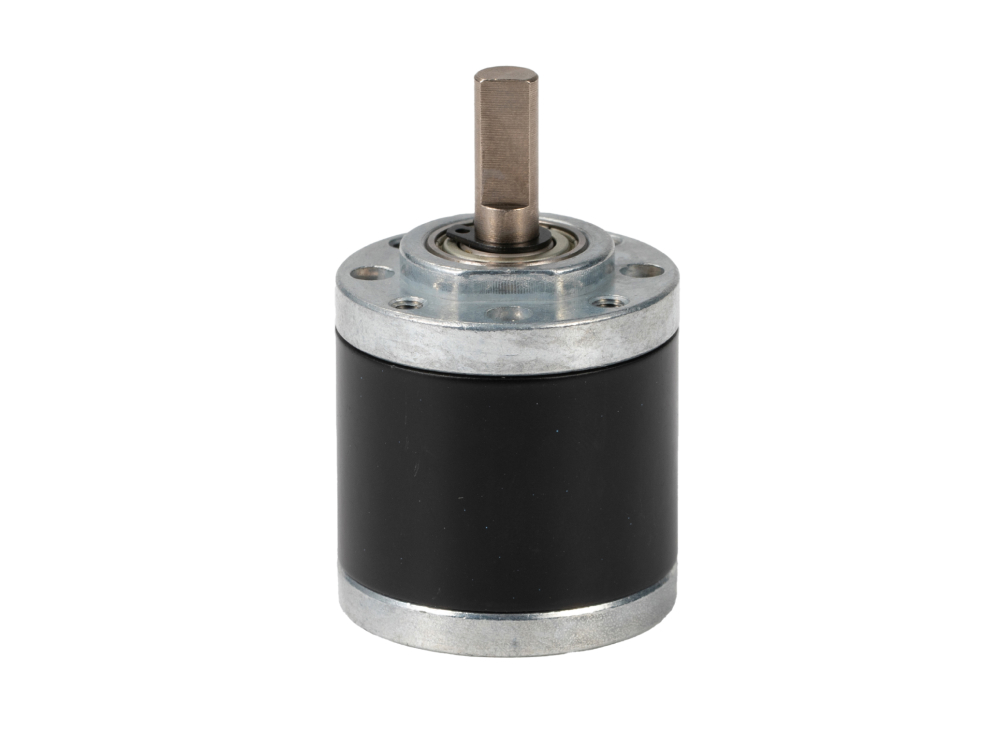

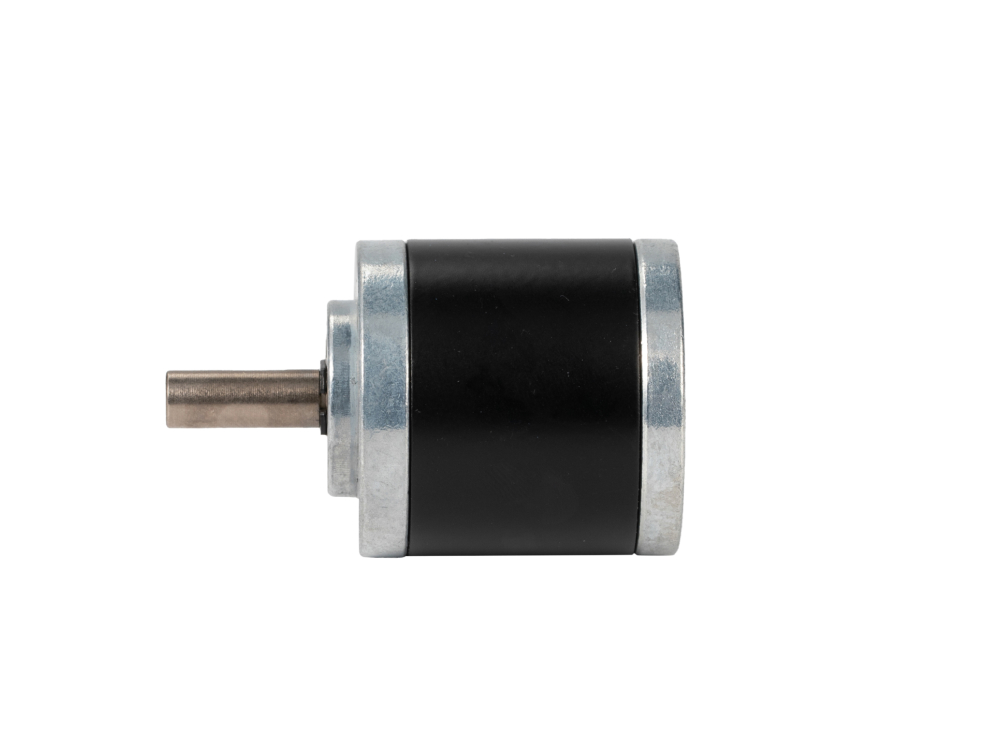

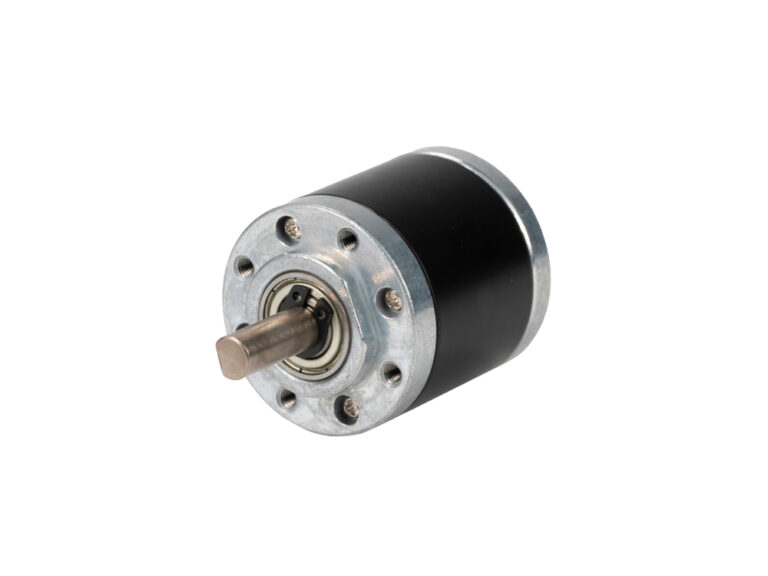

PG-32
Specifications
Series PG32‑1844Kn : 5100 kgf.cm300 kgf.cm184432 mm52.1 mm- Series PG32‑1319Kn : 5100 kgf.cm300 kgf.cm131932 mm52.1 mm
- Series PG32‑943Kn : 5100 kgf.cm300 kgf.cm94332 mm52.1 mm
- Series PG32‑696Kn : 4100 kgf.cm300 kgf.cm69632 mm45.8 mm
- Series PG32‑356Kn : 4100 kgf.cm300 kgf.cm35632 mm45.8 mm
- Series PG32‑255Kn : 4100 kgf.cm300 kgf.cm25532 mm45.8 mm
- Series PG32‑134Kn : 3100 kgf.cm300 kgf.cm13432 mm39.5 mm
- Series PG32‑96Kn : 3100 kgf.cm300 kgf.cm9632 mm39.5 mm
- Series PG32‑69Kn : 3100 kgf.cm300 kgf.cm6932 mm39.5 mm
- Series PG32‑26Kn : 250 kgf.cm150 kgf.cm2632 mm33.2 mm
- Series PG32‑18.5Kn : 250 kgf.cm150 kgf.cm18.532 mm33.2 mm
- Series PG32‑5Kn : 120 kgf.cm60 kgf.cm532 mm26.9 mm
| Gearbox Characteristic Data | |
| Model | PG32 32mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball Bearing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.48 M |
| Gearbox Value | |
| Gear ratio | 1844 |
| Number of gear stage | 5 |
| Gearbox length | 52.1 mm |
| Max continuous torque | 100 kgf.cm |
| Instantaneous break torque | 300 kgf·cm |
| Gearbox efficiency | 50 % |
| Gearbox mass | 196.3 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 / φ 3.14 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG32 32mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball Bearing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.48 M |
| Gearbox Value | |
| Gear ratio | 1319 |
| Number of gear stage | 5 |
| Gearbox length | 52.1 mm |
| Max continuous torque | 100 kgf.cm |
| Instantaneous break torque | 300 kgf·cm |
| Gearbox efficiency | 50 % |
| Gearbox mass | 196.3 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 / φ 3.14 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG32 32mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball Bearing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.48 M |
| Gearbox Value | |
| Gear ratio | 943 |
| Number of gear stage | 5 |
| Gearbox length | 52.1 mm |
| Max continuous torque | 100 kgf.cm |
| Instantaneous break torque | 300 kgf·cm |
| Gearbox efficiency | 50 % |
| Gearbox mass | 196.3 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 / φ 3.14 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG32 32mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball Bearing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.48 M |
| Gearbox Value | |
| Gear ratio | 696 |
| Number of gear stage | 4 |
| Gearbox length | 45.8 mm |
| Max continuous torque | 100 kgf.cm |
| Instantaneous break torque | 300 kgf·cm |
| Gearbox efficiency | 60 % |
| Gearbox mass | 162.7 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 / φ 3.14 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG32 32mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball Bearing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.48 M |
| Gearbox Value | |
| Gear ratio | 356 |
| Number of gear stage | 4 |
| Gearbox length | 45.8 mm |
| Max continuous torque | 100 kgf.cm |
| Instantaneous break torque | 300 kgf·cm |
| Gearbox efficiency | 60 % |
| Gearbox mass | 162.7 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 / φ 3.14 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG32 32mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball Bearing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.48 M |
| Gearbox Value | |
| Gear ratio | 255 |
| Number of gear stage | 4 |
| Gearbox length | 45.8 mm |
| Max continuous torque | 100 kgf.cm |
| Instantaneous break torque | 300 kgf·cm |
| Gearbox efficiency | 60 % |
| Gearbox mass | 162.7 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 / φ 3.14 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG32 32mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball Bearing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.48 M |
| Gearbox Value | |
| Gear ratio | 134 |
| Number of gear stage | 3 |
| Gearbox length | 39.5 mm |
| Max continuous torque | 100 kgf.cm |
| Instantaneous break torque | 300 kgf·cm |
| Gearbox efficiency | 72 % |
| Gearbox mass | 140.2 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 / φ 3.14 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG32 32mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball Bearing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.48 M |
| Gearbox Value | |
| Gear ratio | 96 |
| Number of gear stage | 3 |
| Gearbox length | 39.5 mm |
| Max continuous torque | 100 kgf.cm |
| Instantaneous break torque | 300 kgf·cm |
| Gearbox efficiency | 72 % |
| Gearbox mass | 140.2 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 / φ 3.14 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG32 32mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball Bearing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.48 M |
| Gearbox Value | |
| Gear ratio | 69 |
| Number of gear stage | 3 |
| Gearbox length | 39.5 mm |
| Max continuous torque | 100 kgf.cm |
| Instantaneous break torque | 300 kgf·cm |
| Gearbox efficiency | 72 % |
| Gearbox mass | 140.2 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 / φ 3.14 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG32 32mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball Bearing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.48 M |
| Gearbox Value | |
| Gear ratio | 26 |
| Number of gear stage | 2 |
| Gearbox length | 33.2 mm |
| Max continuous torque | 50 kgf.cm |
| Instantaneous break torque | 150 kgf·cm |
| Gearbox efficiency | 81% |
| Gearbox mass | 118.1 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 / φ 3.14 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG32 32mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball Bearing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.48 M |
| Gearbox Value | |
| Gear ratio | 18.5 |
| Number of gear stage | 2 |
| Gearbox length | 33.2 mm |
| Max continuous torque | 50 kgf.cm |
| Instantaneous break torque | 150 kgf·cm |
| Gearbox efficiency | 81% |
| Gearbox mass | 118.1 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 / φ 3.14 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG32 32mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Ball Bearing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.48 M |
| Gearbox Value | |
| Gear ratio | 5 |
| Number of gear stage | 1 |
| Gearbox length | 26.9 mm |
| Max continuous torque | 100 kgf.cm |
| Instantaneous break torque | 300 kgf.cm |
| Gearbox efficiency | 90% |
| Gearbox mass | 96.3 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 / φ 3.14 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
Technical illustrations
Dimensional Drawing
Characteristic curves
Your Choice
Selected Variant
PG32‑1844K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 100 kgf.cm |
| Gear breaking torque: | 300 kgf.cm |
| Gear ratio: | 1844 |
| Diameter : | 32 mm |
| Length: | 52.1 mm |
Selected Variant
PG32‑1319K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 100 kgf.cm |
| Gear breaking torque: | 300 kgf.cm |
| Gear ratio: | 1319 |
| Diameter : | 32 mm |
| Length: | 52.1 mm |
Selected Variant
PG32‑943K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 100 kgf.cm |
| Gear breaking torque: | 300 kgf.cm |
| Gear ratio: | 943 |
| Diameter : | 32 mm |
| Length: | 52.1 mm |
Selected Variant
PG32‑696K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 100 kgf.cm |
| Gear breaking torque: | 300 kgf.cm |
| Gear ratio: | 696 |
| Diameter : | 32 mm |
| Length: | 45.8 mm |
Selected Variant
PG32‑356K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 100 kgf.cm |
| Gear breaking torque: | 300 kgf.cm |
| Gear ratio: | 356 |
| Diameter : | 32 mm |
| Length: | 45.8 mm |
Selected Variant
PG32‑255K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 100 kgf.cm |
| Gear breaking torque: | 300 kgf.cm |
| Gear ratio: | 255 |
| Diameter : | 32 mm |
| Length: | 45.8 mm |
Selected Variant
PG32‑134K
Key Features
| Gear stage: | n : 3 |
| Continuous input torque: | 100 kgf.cm |
| Gear breaking torque: | 300 kgf.cm |
| Gear ratio: | 134 |
| Diameter : | 32 mm |
| Length: | 39.5 mm |
Selected Variant
PG32‑96K
Key Features
| Gear stage: | n : 3 |
| Continuous input torque: | 100 kgf.cm |
| Gear breaking torque: | 300 kgf.cm |
| Gear ratio: | 96 |
| Diameter : | 32 mm |
| Length: | 39.5 mm |
Selected Variant
PG32‑69K
Key Features
| Gear stage: | n : 3 |
| Continuous input torque: | 100 kgf.cm |
| Gear breaking torque: | 300 kgf.cm |
| Gear ratio: | 69 |
| Diameter : | 32 mm |
| Length: | 39.5 mm |
Selected Variant
PG32‑26K
Key Features
| Gear stage: | n : 2 |
| Continuous input torque: | 50 kgf.cm |
| Gear breaking torque: | 150 kgf.cm |
| Gear ratio: | 26 |
| Diameter : | 32 mm |
| Length: | 33.2 mm |
Selected Variant
PG32‑18.5K
Key Features
| Gear stage: | n : 2 |
| Continuous input torque: | 50 kgf.cm |
| Gear breaking torque: | 150 kgf.cm |
| Gear ratio: | 18.5 |
| Diameter : | 32 mm |
| Length: | 33.2 mm |
Selected Variant
PG32‑5K
Key Features
| Gear stage: | n : 1 |
| Continuous input torque: | 20 kgf.cm |
| Gear breaking torque: | 60 kgf.cm |
| Gear ratio: | 5 |
| Diameter : | 32 mm |
| Length: | 26.9 mm |
