Series PG25
Price scales
| Quantity | Discount | Unit price |
| 1-9 | 0% off | $14.9 |
| 10-99 | 15% off | $12.6 |
| 100+ | 25% off | $11.2 |
Product description

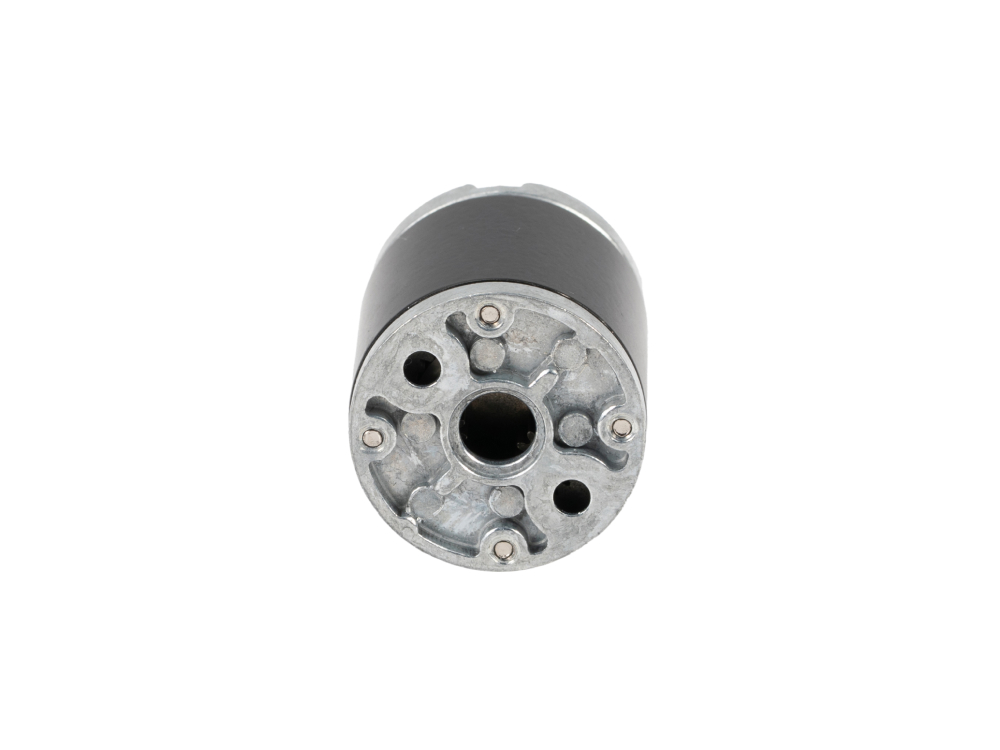

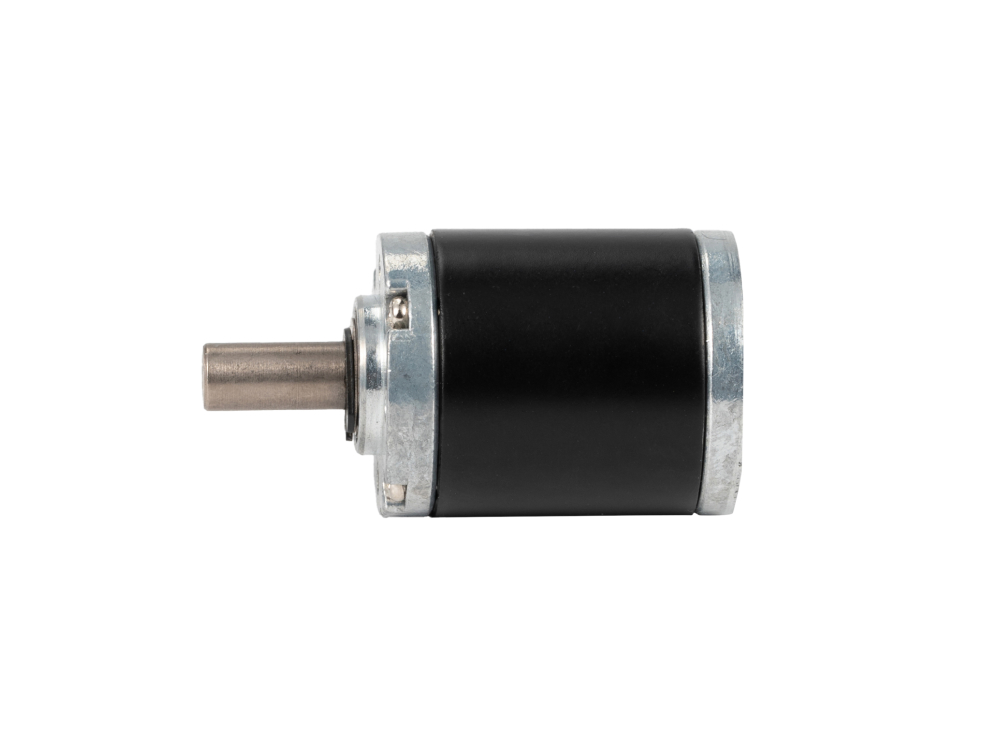

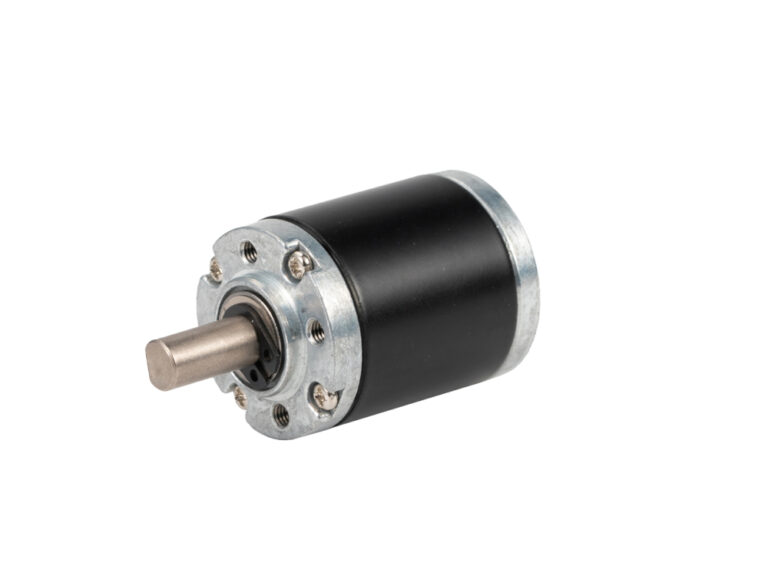

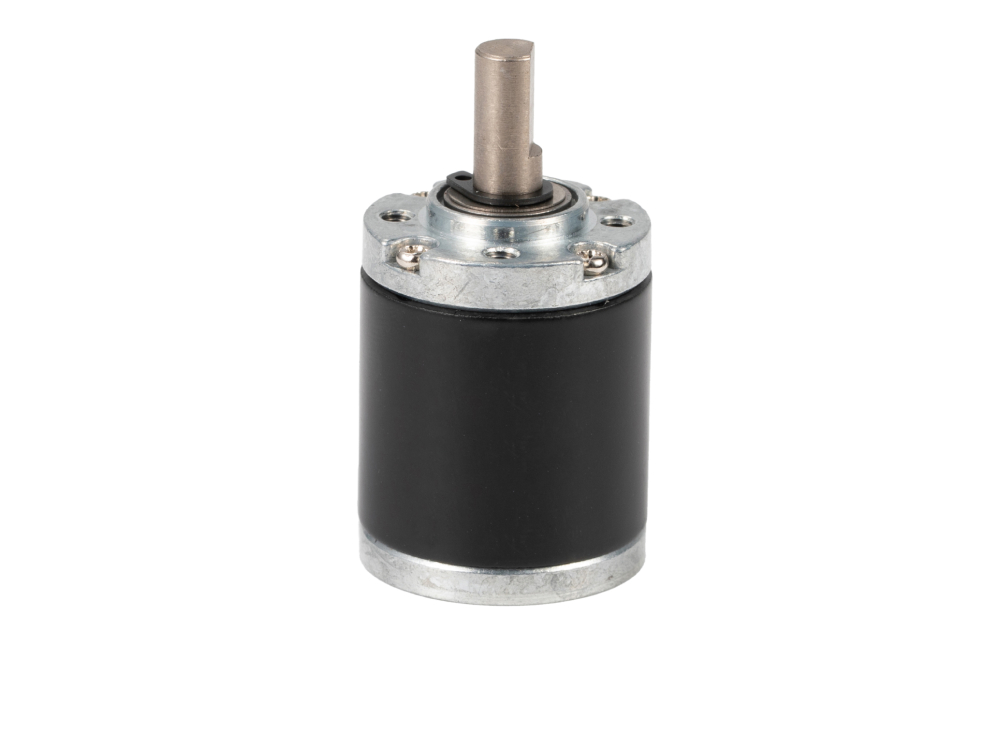

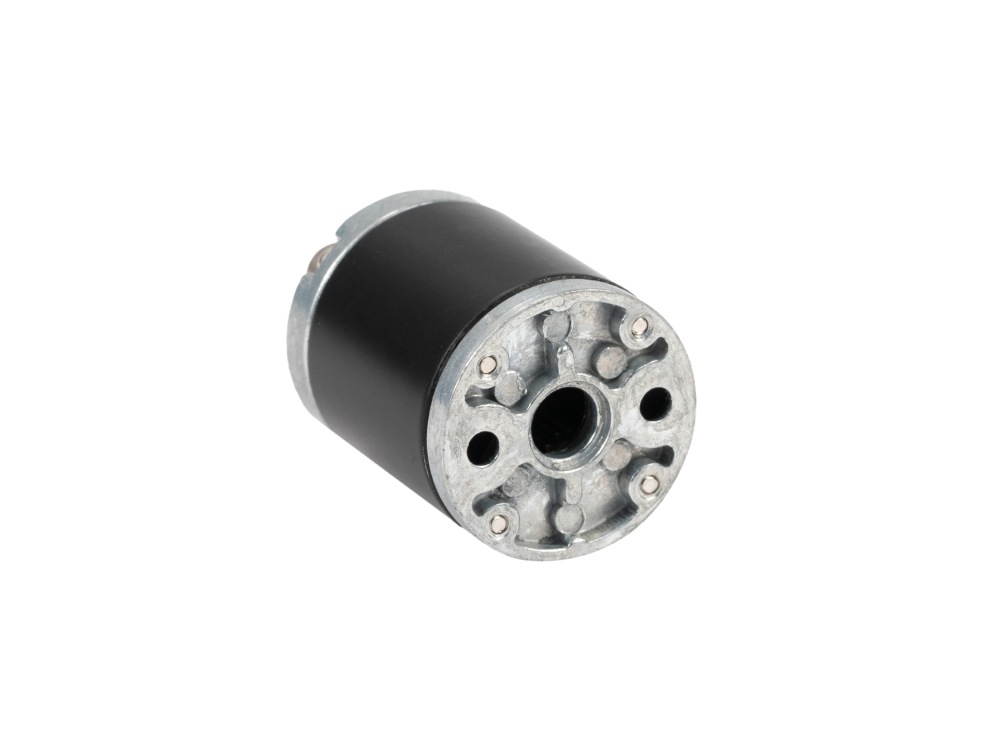

PG-25
Specifications
Series PG25-1026Kn : 410 kgf.cm30 kgf.cm102625 mm40.3 mm- Series PG25‑576Kn : 410 kgf.cm30 kgf.cm57625 mm40.3 mm
- Series PG25‑304Kn : 410 kgf.cm30 kgf.cm30425 mm40.3 mm
- Series PG25‑144Kn : 310 kgf.cm30 kgf.cm14425 mm34.5 mm
- Series PG25‑96Kn : 310 kgf.cm30 kgf.cm9625 mm34.5 mm
- Series PG25‑64Kn : 310 kgf.cm30 kgf.cm6425 mm34.5 mm
- Series PG25‑28.5Kn : 25.0 kgf.cm15.0 kgf.cm28.525 mm28.7 mm
- Series PG25‑24Kn : 25.0 kgf.cm15.0 kgf.cm2425 mm28.7 mm
- Series PG25‑19Kn : 25.0 kgf.cm15.0 kgf.cm1925 mm28.7 mm
- Series PG25‑4.8Kn : 13.0 kgf.cm9.0 kgf.cm4.825 mm25 mm
- Series PG25‑4Kn : 13.0 kgf.cm9.0 kgf.cm425 mm25 mm
| Gearbox Characteristic Data | |
| Model | PG25 25mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Bushing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.4 M |
| Gearbox Value | |
| Gear ratio | 1026 |
| Number of gear stage | 4 |
| Gearbox length | 40.3 mm |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 72% |
| Gearbox mass | 97.6 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG25 25mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Bushing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.4 M |
| Gearbox Value | |
| Gear ratio | 576 |
| Number of gear stage | 4 |
| Gearbox length | 40.3 mm |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 72% |
| Gearbox mass | 97.6 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG25 25mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Bushing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.4 M |
| Gearbox Value | |
| Gear ratio | 304 |
| Number of gear stage | 4 |
| Gearbox length | 40.3 mm |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 72% |
| Gearbox mass | 97.6 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG25 25mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Bushing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.4 M |
| Gearbox Value | |
| Gear ratio | 144 |
| Number of gear stage | 3 |
| Gearbox length | 34.5 mm |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 72% |
| Gearbox mass | 83.4 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG25 25mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Bushing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.4 M |
| Gearbox Value | |
| Gear ratio | 96 |
| Number of gear stage | 3 |
| Gearbox length | 34.5 mm |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 72% |
| Gearbox mass | 83.4 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG25 25mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Bushing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.4 M |
| Gearbox Value | |
| Gear ratio | 64 |
| Number of gear stage | 3 |
| Gearbox length | 34.5 mm |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 72% |
| Gearbox mass | 83.4 g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG25 25mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Bushing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.4 M |
| Gearbox Value | |
| Gear ratio | 28.5 |
| Number of gear stage | 2 |
| Gearbox length | 28.7 mm |
| Max continuous torque | 5.0 kgf.cm |
| Instantaneous break torque | 15.0 kgf.cm |
| Gearbox efficiency | 81% |
| Gearbox mass | 67.9g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG25 25mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Bushing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.4 M |
| Gearbox Value | |
| Gear ratio | 24 |
| Number of gear stage | 2 |
| Gearbox length | 28.7 mm |
| Max continuous torque | 5.0 kgf.cm |
| Instantaneous break torque | 15.0 kgf.cm |
| Gearbox efficiency | 81% |
| Gearbox mass | 67.9g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG25 25mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Bushing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.4 M |
| Gearbox Value | |
| Gear ratio | 19 |
| Number of gear stage | 2 |
| Gearbox length | 28.7 mm |
| Max continuous torque | 5.0 kgf.cm |
| Instantaneous break torque | 15.0 kgf.cm |
| Gearbox efficiency | 81% |
| Gearbox mass | 67.9g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG25 25mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Bushing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.4 M |
| Gearbox Value | |
| Gear ratio | 4.8 |
| Number of gear stage | 1 |
| Gearbox length | 25 mm |
| Max continuous torque | 3.0 kgf.cm |
| Instantaneous break torque | 9.0 kgf.cm |
| Gearbox efficiency | 90% |
| Gearbox mass | 50.1g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | PG25 25mm Planetary Gearbox |
| Gearbox housing material | Powder Metallurgy (Fe) |
| Gear material | Powder Metallurgy (Fe) / Plastics |
| Gear design | Spur Gear |
| Bearing at output shaft | Bushing |
| Lubricant in gearbox | Graphene oil |
| Axial play | ≤ 0.2mm |
| Radial play | ≤ 0.1mm |
| Backlash at no-load | ≤ 1.5° |
| Gear module | 0.4 M |
| Gearbox Value | |
| Gear ratio | 4 |
| Number of gear stage | 1 |
| Gearbox length | 25 mm |
| Max continuous torque | 3.0 kgf.cm |
| Instantaneous break torque | 9.0 kgf.cm |
| Gearbox efficiency | 90% |
| Gearbox mass | 50.1g |
| Output shaft diameter | 6 mm |
| Pinion hole diameter | φ 2.28 |
| Operating temperature range | -30 ... 65 °C |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 349 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
Technical illustrations
Dimensional Drawing
Characteristic curves
Your Choice
Selected Variant
PG25-1026K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 1026 |
| Diameter : | 25 mm |
| Length: | 40.3 mm |
Selected Variant
PG25‑576K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 576 |
| Diameter : | 25 mm |
| Length: | 40.3 mm |
Selected Variant
PG25‑304K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 304 |
| Diameter : | 25 mm |
| Length: | 40.3 mm |
Selected Variant
PG25‑144K
Key Features
| Gear stage: | n : 3 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 144 |
| Diameter : | 25 mm |
| Length: | 34.5 mm |
Selected Variant
PG25‑96K
Key Features
| Gear stage: | n : 3 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 96 |
| Diameter : | 25 mm |
| Length: | 34.5 mm |
Selected Variant
PG25‑64K
Key Features
| Gear stage: | n : 3 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 64 |
| Diameter : | 25 mm |
| Length: | 34.5 mm |
Selected Variant
PG25‑28.5K
Key Features
| Gear stage: | n : 2 |
| Continuous input torque: | 5.0 kgf.cm |
| Gear breaking torque: | 15.0 kgf.cm |
| Gear ratio: | 28.5 |
| Diameter : | 25 mm |
| Length: | 28.7 mm |
Selected Variant
PG25‑24K
Key Features
| Gear stage: | n : 2 |
| Continuous input torque: | 5.0 kgf.cm |
| Gear breaking torque: | 15.0 kgf.cm |
| Gear ratio: | 24 |
| Diameter : | 25 mm |
| Length: | 28.7 mm |
Selected Variant
PG25‑19K
Key Features
| Gear stage: | n : 2 |
| Continuous input torque: | 5.0 kgf.cm |
| Gear breaking torque: | 15.0 kgf.cm |
| Gear ratio: | 19 |
| Diameter : | 25 mm |
| Length: | 28.7 mm |
Selected Variant
PG25‑4.8K
Key Features
| Gear stage: | n : 1 |
| Continuous input torque: | 3.0 kgf.cm |
| Gear breaking torque: | 9.0 kgf.cm |
| Gear ratio: | 4.8 |
| Diameter : | 25 mm |
| Length: | 25 mm |
Selected Variant
PG25‑4K
Key Features
| Gear stage: | n : 1 |
| Continuous input torque: | 3.0 kgf.cm |
| Gear breaking torque: | 9.0 kgf.cm |
| Gear ratio: | 4 |
| Diameter : | 25 mm |
| Length: | 25 mm |
