Series DC555

Price scales

QuantityDiscountUnit price
1-90% off$2.97
10-9915% off$2.52
100+25% off$2.23

Product description

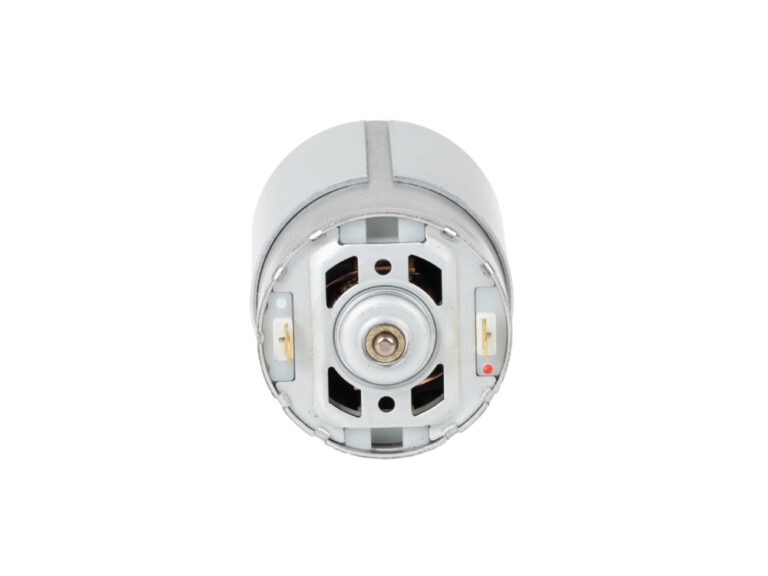

The DC-555 motor is a high-power brushed DC motor with a 36 mm diameter and a 57 mm length, designed for applications requiring high torque output and strong load capability.

Specifications

Value nominal voltage
Rated voltage24 V
Rated current0.73 A
Rated torque244 gf.cm
Rated speed5300
Stall torque2065 gf.cm
Stall current5.4 A
No-load current0.25 A
No-load speed6000
Rated power12.9 W
Max efficiency72 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan600 hours
Value nominal voltage
Rated voltage24 V
Rated current0.44 A
Rated torque190 gf.cm
Rated speed3980
Stall torque1713 gf.cm
Stall current3.3 A
No-load current0.14 A
No-load speed4500
Rated power7.55 W
Max efficiency72 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan600 hours
Value nominal voltage
Rated voltage24 V
Rated current0.24 A
Rated torque158 gf.cm
Rated speed2663
Stall torque1470 gf.cm
Stall current1.9 A
No-load current0.10 A
No-load speed3000
Rated power4.11 W
Max efficiency72 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan600 hours
Value nominal voltage
Rated voltage12 V
Rated current1.33 A
Rated torque215 gf.cm
Rated speed5244
Stall torque1722 gf.cm
Stall current9.3 A
No-load current0.42 A
No-load speed6000
Rated power11.6 W
Max efficiency72 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan600 hours
Value nominal voltage
Rated voltage12 V
Rated current0.84 A
Rated torque184 gf.cm
Rated speed3929
Stall torque1507 gf.cm
Stall current5.9 A
No-load current0.28 A
No-load speed4500
Rated power7.42 W
Max efficiency72 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan600 hours
Value nominal voltage
Rated voltage12 V
Rated current0.6 A
Rated torque179 gf.cm
Rated speed2600
Stall torque1650 gf.cm
Stall current3.1 A
No-load current0.18 A
No-load speed3000
Rated power5 W
Max efficiency72 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan600 hours
