Series DC2238

Price scales

QuantityDiscountUnit price
1-90% off$2.97
10-9915% off$2.52
100+25% off$2.23

Product description

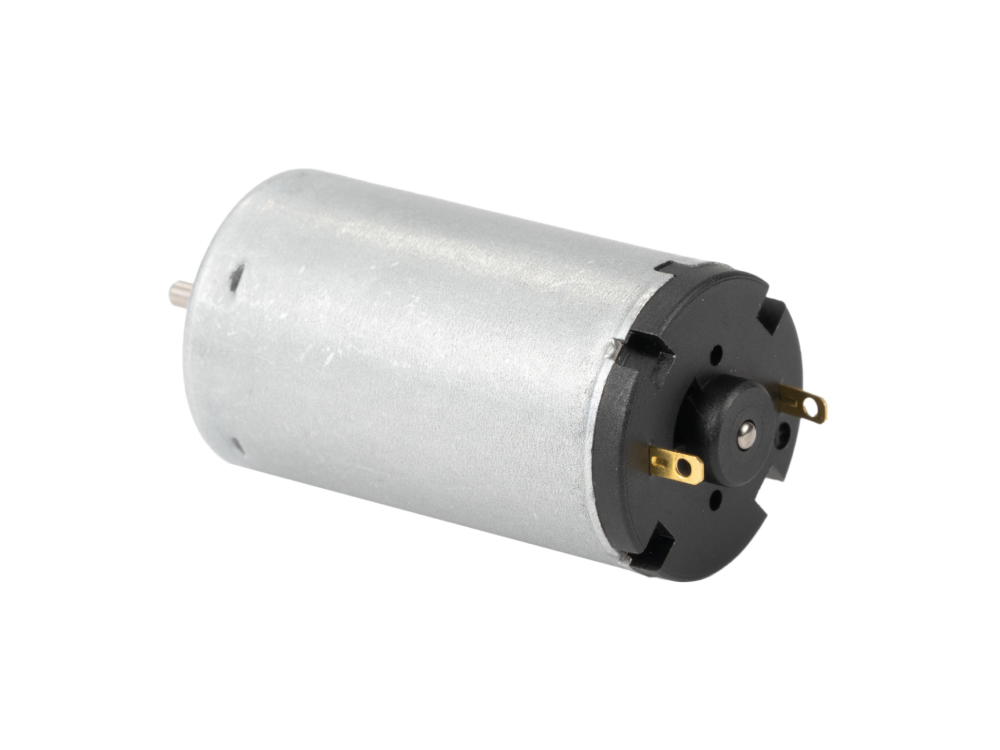

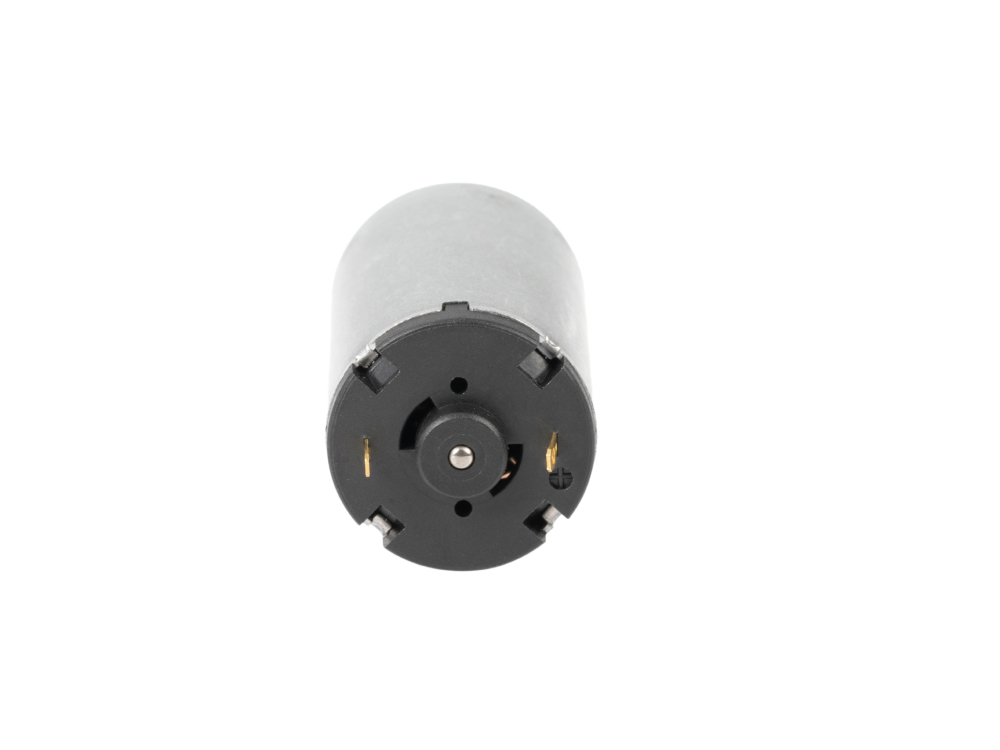

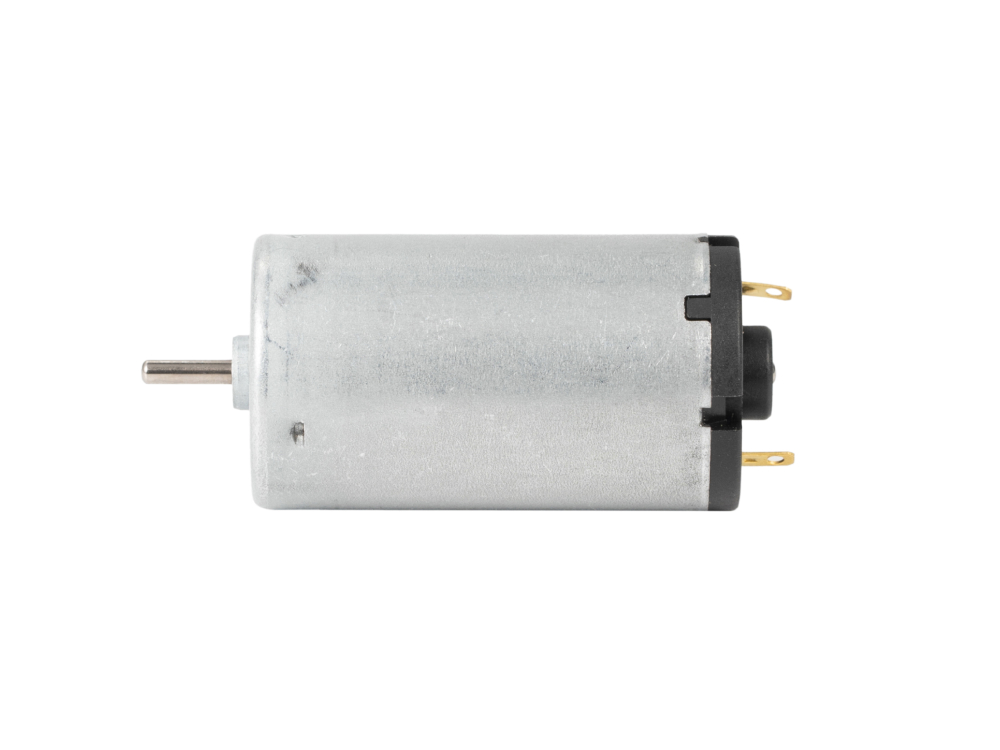

The DC-2238 motor is a compact brushed DC motor with a diameter of 22 mm and a length of 38.2 mm, designed for applications requiring higher torque output within a limited installation space.

Specifications

Value nominal voltage
Rated voltage24 V
Rated current0.186 A
Rated torque50 gf.cm
Rated speed5388
Stall torque312 gf.cm
Stall current0.95 A
No-load current65 mA
No-load speed6000
Rated power2.75 W
Max efficiency75 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight32 g
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan250 hours
Value nominal voltage
Rated voltage24 V
Rated current0.14 A
Rated torque35 gf.cm
Rated speed3800
Stall torque265 gf.cm
Stall current0.75 A
No-load current50 mA
No-load speed4500
Rated power1.55 W
Max efficiency75 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight32 g
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan250 hours
Value nominal voltage
Rated voltage12 V
Rated current0.342 A
Rated torque49 gf.cm
Rated speed4792
Stall torque248 gf.cm
Stall current1.3 A
No-load current110 mA
No-load speed6000
Rated power2.42 W
Max efficiency75 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight32 g
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan250 hours
Value nominal voltage
Rated voltage12 V
Rated current0.27 A
Rated torque35 gf.cm
Rated speed3600
Stall torque160 gf.cm
Stall current1.1 A
No-load current90 mA
No-load speed4500
Rated power1.3 W
Max efficiency75 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight32 g
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan250 hours
