Series DC180

Price scales

QuantityDiscountUnit price
1-90% off$2.97
10-9915% off$2.52
100+25% off$2.23

Product description

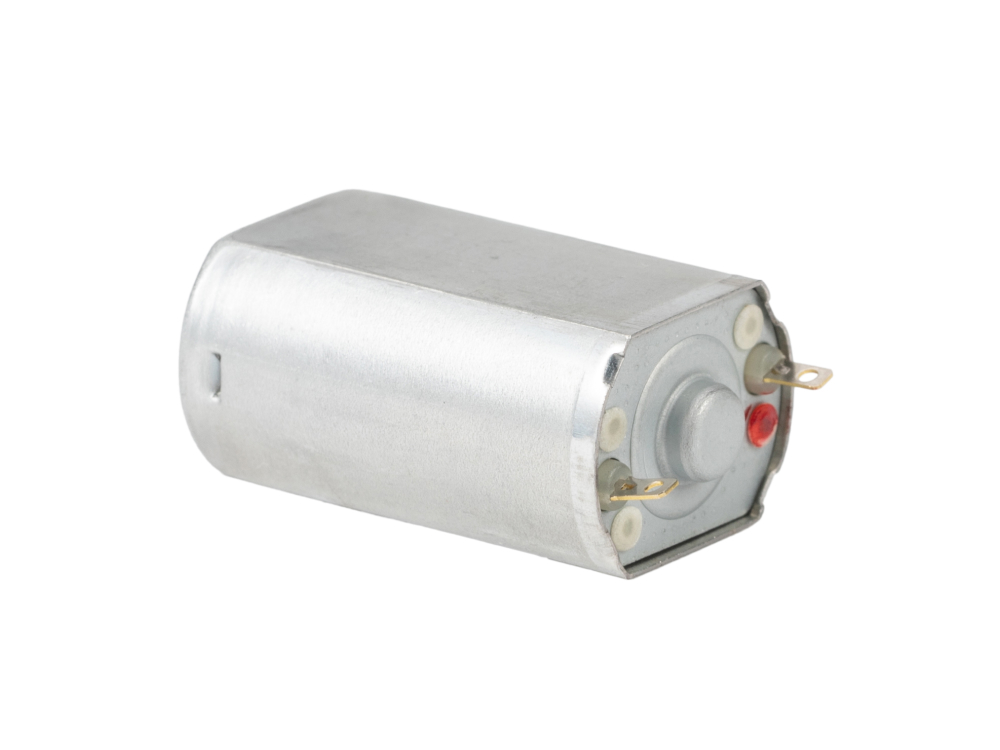

The DC-180 motor is a compact brushed DC motor with a diameter of 20.4 mm and a length of 32.1 mm, designed for small drive systems requiring higher torque within a limited installation space.

Specifications

Value nominal voltage
Rated voltage24 V
Rated current0.35 A
Rated torque36 gf.cm
Rated speed12500
Stall torque220 gf.cm
Stall current1.6 A
No-load current55 mA
No-load speed15000
Rated power4.45 W
Max efficiency71 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight32 g
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan150 hours
Value nominal voltage
Rated voltage12 V
Rated current0.11 A
Rated torque23 gf.cm
Rated speed7416
Stall torque139 gf.cm
Stall current0.11 A
No-load current25 mA
No-load speed9000
Rated power1.74 W
Max efficiency71 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight32 g
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan150 hours
Value nominal voltage
Rated voltage12 V
Rated current0.75 A
Rated torque35 gf.cm
Rated speed12500
Stall torque210 gf.cm
Stall current3.0 A
No-load current135 mA
No-load speed15000
Rated power4.5 W
Max efficiency71 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight32 g
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan150 hours
Value nominal voltage
Rated voltage12 V
Rated current0.3 A
Rated torque24 gf.cm
Rated speed7200
Stall torque60 gf.cm
Stall current1.1 A
No-load current50 mA
No-load speed9000
Rated power1.8 W
Max efficiency72 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight32 g
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan150 hours
