Series DC050

Price scales

QuantityDiscountUnit price
1-90% off$2.97
10-9915% off$2.52
100+25% off$2.23

Product description

The DC-050 motor is a compact micro brushed DC motor with a diameter of 15.4 mm, designed for space-constrained applications requiring stable performance and simple control.

Specifications

Value nominal voltage
Rated voltage24 V
Rated current0.11 A
Rated torque12 gf.cm
Rated speed10000
Stall torque60 gf.cm
Stall current0.4 A
No-load current45 mA
No-load speed13000
Rated power1.2 W
Max efficiency75 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-40℃-100℃
Working Lifespan300
Value nominal voltage
Rated voltage12 V
Rated current0.19 A
Rated torque10 gf.cm
Rated speed9600
Stall torque50 gf.cm
Stall current0.58 A
No-load current55 mA
No-load speed12000
Rated power0.9 W
Max efficiency75 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-40℃-100℃
Working Lifespan300
Value nominal voltage
Rated voltage12 V
Rated current0.14 A
Rated torque8 gf.cm
Rated speed7000
Stall torque50 gf.cm
Stall current0.5 A
No-load current45 mA
No-load speed9000
Rated power0.5 W
Max efficiency75 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationCW / CCW
Number of pole pairs2
Magnet materialFerrite
Enameled wire materialEnameled copper wire
Insulating paint layerPolyurethane enamelled wire (UEW)
Carbon brush materialMetal graphite brush
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-40℃-100℃
Working Lifespan300

Technical illustrations

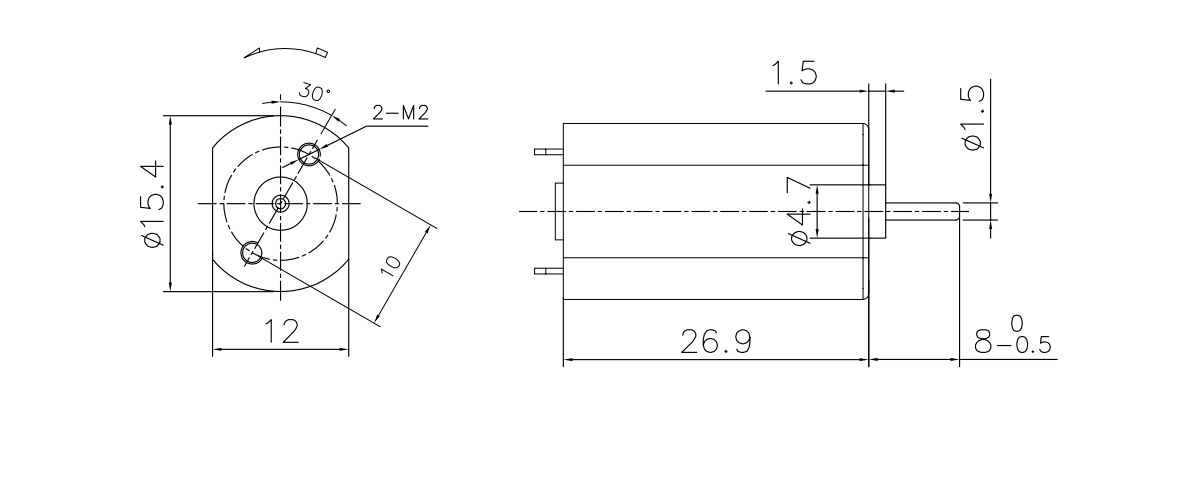

Dimensional Drawing

Characteristic curves
