Series AF Series
Price scales
| Quantity | Discount | Unit price |
| 1-9 | 0% off | $9.99 |
| 10-99 | 15% off | $8.49 |
| 100+ | 25% off | $7.49 |
Product description
AF
Specifications
Series AF-529Kn : 610 kgf.cm30 kgf.cm52947 mm73 mm- Series AF-366Kn : 610 kgf.cm30 kgf.cm36647 mm73 mm
- Series AF-244.2Kn : 610 kgf.cm30 kgf.cm244.247 mm73 mm
- Series AF-176.4Kn : 58 kgf.cm24 kgf.cm176.447 mm73 mm
- Series AF-122Kn : 58 kgf.cm24 kgf.cm12247 mm73 mm
- Series AF-67Kn : 45 kgf.cm15 kgf.cm6747 mm73 mm
- Series AF-36.6Kn : 45 kgf.cm15 kgf.cm36.647 mm73 mm
- Series AF-13.6Kn : 33 kgf.cm9 kgf.cm13.647 mm73 mm
| Gearbox Characteristic Data | |

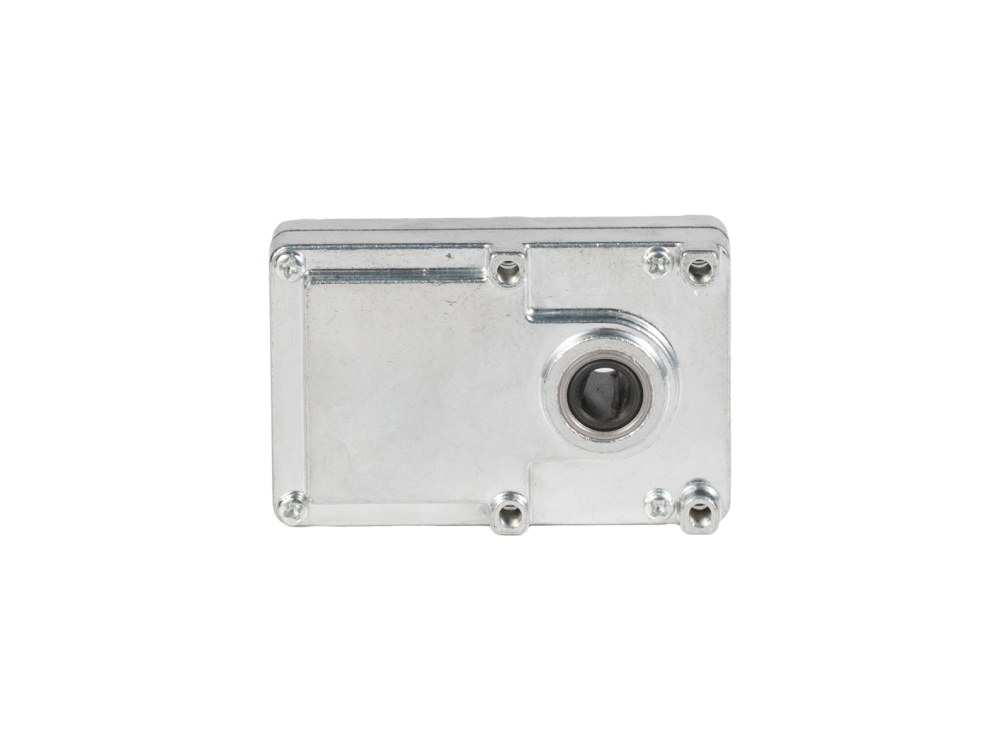

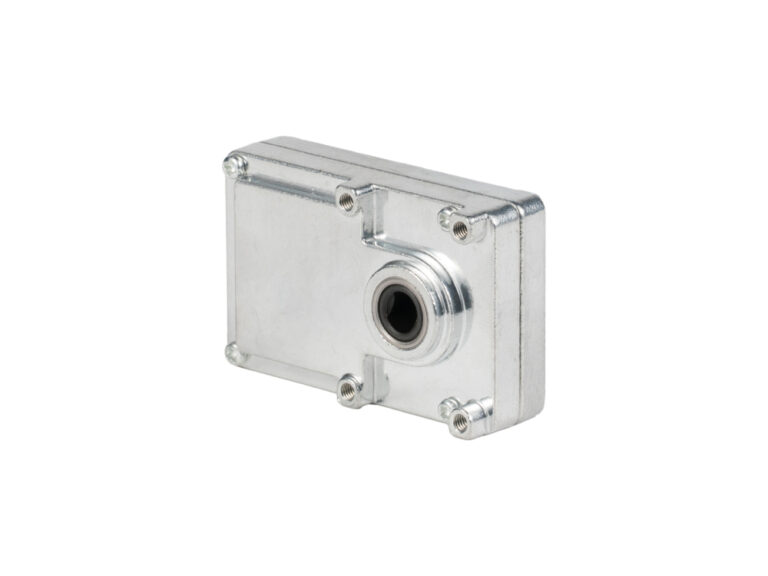

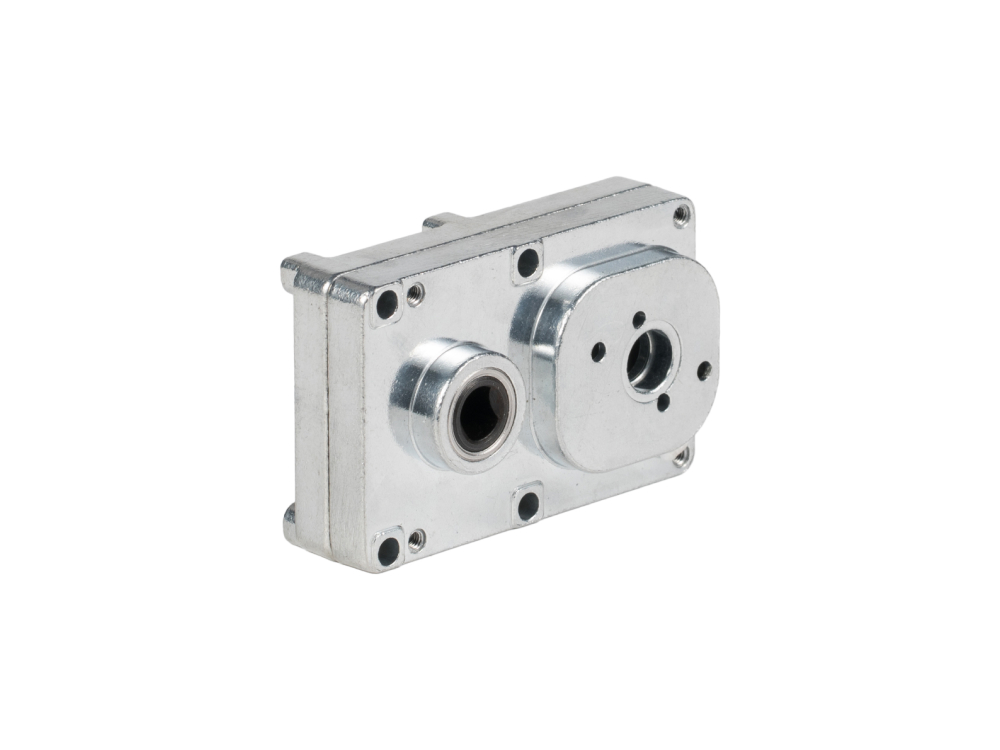

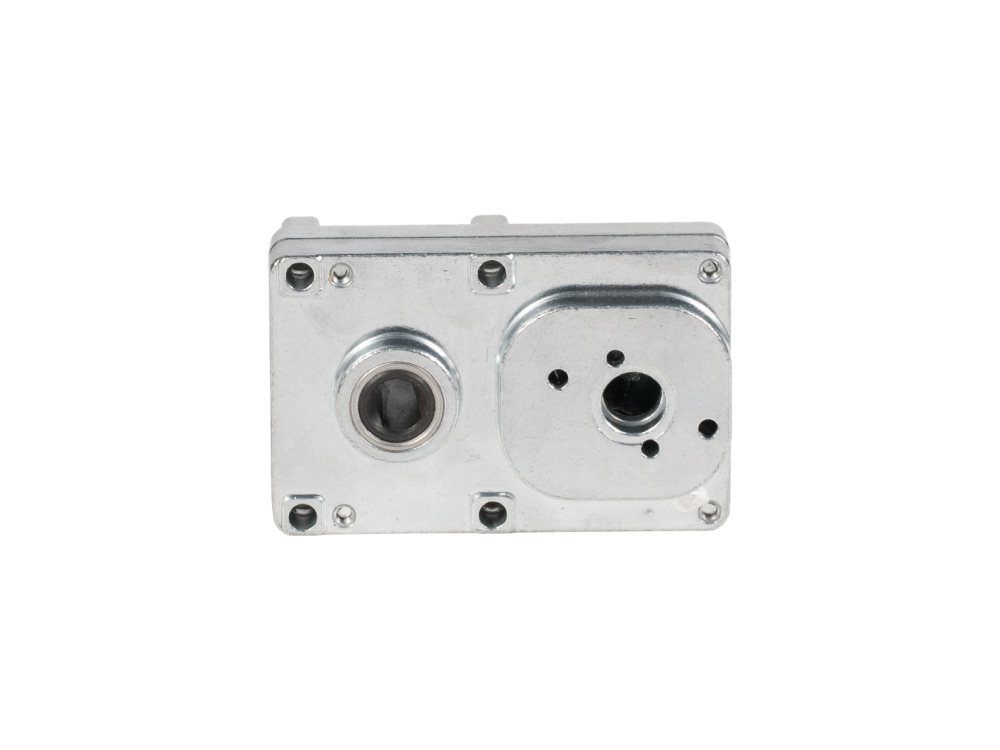

| Model | AF Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 529 |
| Number of gear stage | 6 |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 59 % |
| Gearbox mass | |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.3 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | AF Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 366 |
| Number of gear stage | 6 |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 59 % |
| Gearbox mass | |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.3 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | AF Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 244.2 |
| Number of gear stage | 6 |
| Max continuous torque | 10 kgf.cm |
| Instantaneous break torque | 30 kgf.cm |
| Gearbox efficiency | 59 % |
| Gearbox mass | |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.3 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | AF Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 176.4 |
| Number of gear stage | 5 |
| Max continuous torque | 8 kgf.cm |
| Instantaneous break torque | 24 kgf.cm |
| Gearbox efficiency | 65 % |
| Gearbox mass | |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.3 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | AF Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 122 |
| Number of gear stage | 5 |
| Max continuous torque | 8 kgf.cm |
| Instantaneous break torque | 24 kgf.cm |
| Gearbox efficiency | 65 % |
| Gearbox mass | |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.3 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | AF Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 67 |
| Number of gear stage | 4 |
| Max continuous torque | 5 kgf.cm |
| Instantaneous break torque | 15 kgf.cm |
| Gearbox efficiency | 73 % |
| Gearbox mass | |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.3 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | AF Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 36.6 |
| Number of gear stage | 4 |
| Max continuous torque | 5 kgf.cm |
| Instantaneous break torque | 15 kgf.cm |
| Gearbox efficiency | 73 % |
| Gearbox mass | |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.3 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
| Gearbox Characteristic Data | |
| Model | AF Squared Spur Gearbox |
| Gearbox housing material | Zinc Alloy （Die casting） |
| Gear material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear design | Helical Gear / Spur Gear |
| Bearing at output shaft | Sleeve Bearing |
| Lubricant in gearbox | FUMIO |
| Shaft axial load | ≤ 5.0 kgf |
| Radial load | ≤ 3.0 kgf |
| Axial play | ≤ 0.35 mm |
| Radial play | ≤ 0.1 mm |
| Backlash at no-load | ≤ 3° |
| Gear module | 0.5 M / 0.6 M / 0.8 M |
| Gearbox Value | |
| Gear ratio | 13.6 |
| Number of gear stage | 3 |
| Max continuous torque | 3 kgf.cm |
| Instantaneous break torque | 9 kgf.cm |
| Gearbox efficiency | 81 % |
| Gearbox mass | |
| Output shaft diameter | 8 mm |
| Pinion hole diameter | φ 2 / φ 2.3 / φ 3.1 |
| Operating temperature range | -20 ... 65 °C |
| Operating relative humidity | 20% - 85% RH |
| Electrical characteristics | |
| Terminal resistance | |
| Terminal inductance | |
| Torque constant | |
| Speed constant | |
| Back-EMF constant | |
| Rotor inductance | |
| Rotor inertia | |
| Mechanical characteristics | |
| Weight | 103 g |
| Noise Level @ 30cm | 53 dB |
| Noise Level @ 50cm | 48 dB |
| Operating temperature range | -40℃-100℃ |
| Working Lifespan | 3000 hours |
Technical illustrations
Dimensional Drawing
Characteristic curves
Your Choice
Selected Variant
AF-529K
Key Features
| Gear stage: | n : 6 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 529 |
| Diameter : | 47 mm |
| Length: | 73 mm |
Selected Variant
AF-366K
Key Features
| Gear stage: | n : 6 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 366 |
| Diameter : | 47 mm |
| Length: | 73 mm |
Selected Variant
AF-244.2K
Key Features
| Gear stage: | n : 6 |
| Continuous input torque: | 10 kgf.cm |
| Gear breaking torque: | 30 kgf.cm |
| Gear ratio: | 244.2 |
| Diameter : | 47 mm |
| Length: | 73 mm |
Selected Variant
AF-176.4K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 8 kgf.cm |
| Gear breaking torque: | 24 kgf.cm |
| Gear ratio: | 176.4 |
| Diameter : | 47 mm |
| Length: | 73 mm |
Selected Variant
AF-122K
Key Features
| Gear stage: | n : 5 |
| Continuous input torque: | 8 kgf.cm |
| Gear breaking torque: | 24 kgf.cm |
| Gear ratio: | 122 |
| Diameter : | 47 mm |
| Length: | 73 mm |
Selected Variant
AF-67K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 5 kgf.cm |
| Gear breaking torque: | 15 kgf.cm |
| Gear ratio: | 67 |
| Diameter : | 47 mm |
| Length: | 73 mm |
Selected Variant
AF-36.6K
Key Features
| Gear stage: | n : 4 |
| Continuous input torque: | 5 kgf.cm |
| Gear breaking torque: | 15 kgf.cm |
| Gear ratio: | 36.6 |
| Diameter : | 47 mm |
| Length: | 73 mm |
Selected Variant
AF-13.6K
Key Features
| Gear stage: | n : 3 |
| Continuous input torque: | 3 kgf.cm |
| Gear breaking torque: | 9 kgf.cm |
| Gear ratio: | 13.6 |
| Diameter : | 47 mm |
| Length: | 73 mm |
