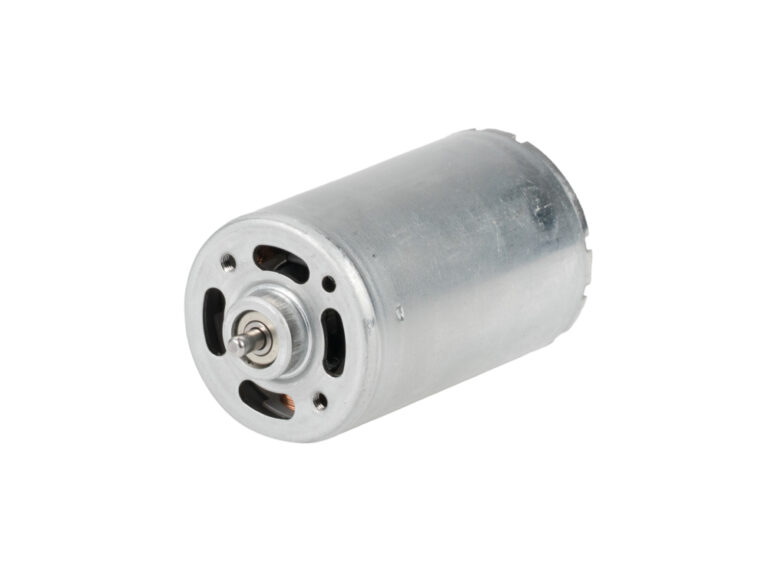

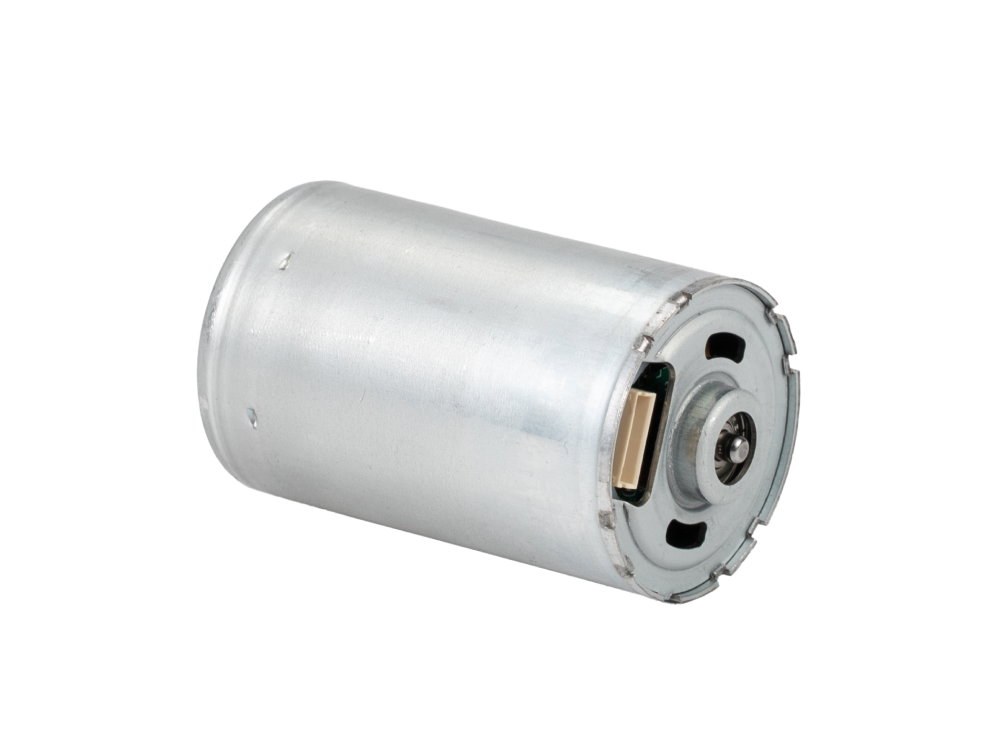

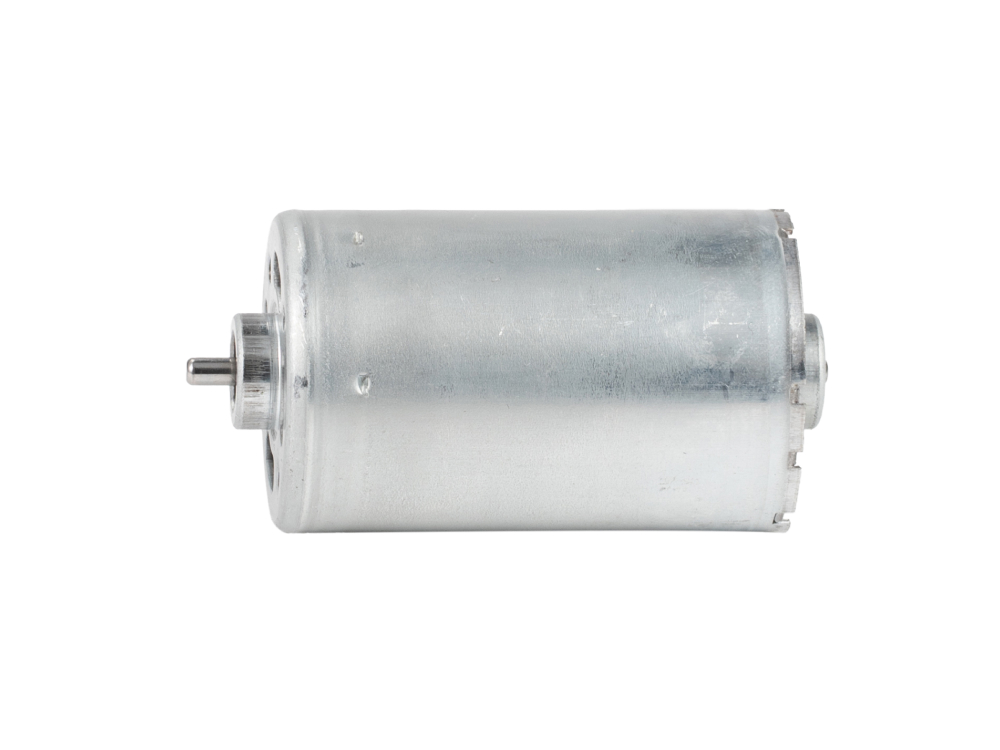

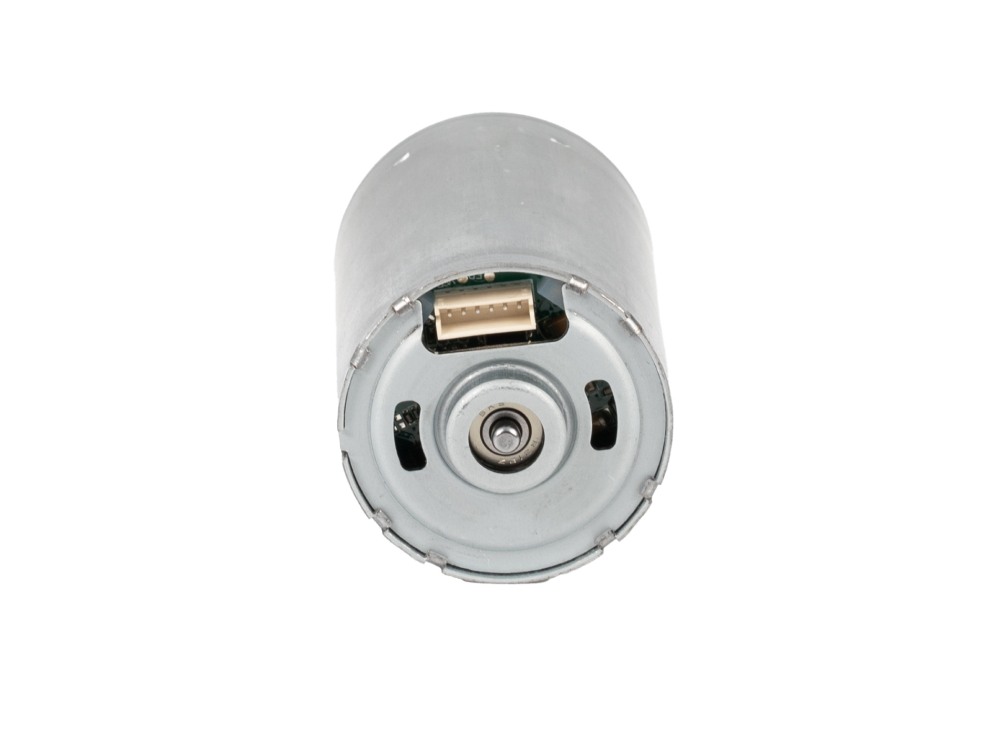

Series BL-36

Price scales

QuantityDiscountUnit price
1-90% off$2.97
10-9915% off$2.52
100+25% off$2.23

Product description

BL-36

Specifications

Value nominal voltage
Rated voltage24 V
Rated current2.2 A
Rated torque441 gf.cm
Rated speed7937
Stall torque3397 gf.cm
Stall current14.1 A
No-load current470 mA
No-load speed9000
Rated power35.9 W
Max efficiency72 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationelectronically reversible
Number of pole pairs4
Number of Phase3
Magnet materialNd2Fe14B
Enameled wire materialEnameled Copper Wire
Insulating paint layerPolyurethane Enamelled Wire (UEW)
Hall SensorCusomized
Motor Control3 phase rectangular wave rectified + PWM
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight243 g
Noise Level @ 30cm53 dB
Noise Level @ 50cm48 dB
Operating temperature range-20℃-60℃
Working Lifespan5000 hours
Value nominal voltage
Rated voltage24 V
Rated current1.2 A
Rated torque400 gf.cm
Rated speed5100
Stall torque2832 gf.cm
Stall current7.4 A
No-load current260 mA
No-load speed6000
Rated power21.2 W
Max efficiency77 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationelectronically reversible
Number of pole pairs4
Number of Phase3
Magnet materialNd2Fe14B
Enameled wire materialEnameled Copper Wire
Insulating paint layerPolyurethane Enamelled Wire (UEW)
Hall SensorCusomized
Motor Control3 phase rectangular wave rectified + PWM
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight237 g
Noise Level @ 30cm53 dB
Noise Level @ 50cm48 dB
Operating temperature range-20℃-60℃
Working Lifespan5000 hours
Value nominal voltage
Rated voltage18 V
Rated current1.13 A
Rated torque365 gf.cm
Rated speed3500
Stall torque2633 gf.cm
Stall current6.5 A
No-load current210 mA
No-load speed4200
Rated power14 W
Max efficiency78 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationelectronically reversible
Number of pole pairs4
Number of Phase3
Magnet materialNd2Fe14B
Enameled wire materialEnameled Copper Wire
Insulating paint layerPolyurethane Enamelled Wire (UEW)
Hall SensorCusomized
Motor Control3 phase rectangular wave rectified + PWM
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight243 g
Noise Level @ 30cm44 dB
Noise Level @ 50cm39 dB
Operating temperature range-20℃-60℃
Working Lifespan5000 hours
Value nominal voltage
Rated voltage36 V
Rated current1.9 A
Rated torque280 gf.cm
Rated speed4931
Stall torque1676 gf.cm
Stall current8.9 A
No-load current460 mA
No-load speed6000
Rated power14.2 W
Max efficiency64 %
Motor material
Housing materialElectrolytic zinc coated steel
Direction of rotationelectronically reversible
Number of pole pairs4
Number of Phase3
Magnet materialNd2Fe14B
Enameled wire materialEnameled Copper Wire
Insulating paint layerPolyurethane Enamelled Wire (UEW)
Hall SensorCusomized
Motor Control3 phase rectangular wave rectified + PWM
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight243 g
Noise Level @ 30cm43 dB
Noise Level @ 50cm38 dB
Operating temperature range-20℃-60℃
Working Lifespan5000 hours

Technical illustrations

Dimensional Drawing

Characteristic curves
