Series MX5310
Price scales
| Quantity | Discount | Unit price |
| 1-9 | 0% off | $49.9 |
| 10-99 | 15% off | $42.4 |
| 100+ | 25% off | $37.4 |
Product description
MX-5310
Specifications
Series MX5310KV100HA – 24V24 V500 mN.m24001450 mN.m62 mm37 mm- Series MX5310KV100HA – 48V48 V1000 mN.m72002800 mN.m62 mm37 mm
| Value nominal voltage | |
| Rated voltage | 24 V |
| Rated current | 1.2 A |
| Rated torque | 500 mN.m |
| Rated speed | 2000 |
| Stall torque | 1450 mN.m |
| Stall current | 1.4 A |
| No-load current | 230 mA |
| No-load speed | 2400 |
| Maximal Power | 100 W |
| Max efficiency | 82 % |
| Motor Configuration | |
| Housing material | Aluminum Alloy with Anodizing |
| Mechanical structure | Outrunner Brushless Motor |
| Direction of rotation | electronically reversible |
| Number of pole pairs | 7 |
| Number of Phase | 3 |
| Magnet material | NdFeB |
| Enameled wire material | Enameled Copper Wire |
| Winding connection | Star |
| Insulating paint layer | Polyurethane Enamelled Wire (UEW) |
| Rotor inertia | 8.2 uNm*s² |
| Weight | 300 g |
| Protection level | IP 44 |
| Electrical Data | |
| Speed constant | 100 KV |
| Torque constant | 44 mNm/A |
| Single phase resistance | 400 mOhm |
| DQ inductance | 200 uH |
| Friction | 0.6 uN*m*s |
| Thermal resistance housing - ambient | 4.9 K/W |
| Thermal resistance winding - housing | 3.8 K/W |
| Ambient temperature | -40 ºC - 100 ºC |
| Maximal winding temperature | 120 ºC |
| Noise Level @ 30 cm | |
| Working Lifespan | 5000 |
| Sensoric | |
| Sensor type | Bipolar self-locking hal |
| Number of halls | 3 |
| Supply voltage | 5 V |
| Electrical angle | 120 ° |
| Value nominal voltage | |
| Rated voltage | 48 V |
| Rated current | 2.4 A |
| Rated torque | 1000 mN.m |
| Rated speed | 3200 |
| Stall torque | 2800 mN.m |
| Stall current | 2.8 A |
| No-load current | 500 mA |
| No-load speed | 4800 |
| Maximal Power | 380 W |
| Max efficiency | 83 % |
| Motor Configuration | |
| Housing material | Aluminum Alloy with Anodizing |
| Mechanical structure | Outrunner Brushless Motor |
| Direction of rotation | electronically reversible |
| Number of pole pairs | 7 |
| Number of Phase | 3 |
| Magnet material | NdFeB |
| Enameled wire material | Enameled Copper Wire |
| Winding connection | Star |
| Insulating paint layer | Polyurethane Enamelled Wire (UEW) |
| Rotor inertia | 8.2 uNm*s² |
| Weight | 300 g |
| Protection level | IP 44 |
| Electrical Data | |
| Speed constant | 100 KV |
| Torque constant | 44 mNm/A |
| Single phase resistance | 400 mOhm |
| DQ inductance | 200 uH |
| Friction | 0.6 uN*m*s |
| Thermal resistance housing - ambient | 4.9 K/W |
| Thermal resistance winding - housing | 3.8 K/W |
| Ambient temperature | -40 ºC - 100 ºC |
| Maximal winding temperature | 120 ºC |
| Noise Level @ 30 cm | |
| Working Lifespan | 5000 |
| Sensoric | |
| Sensor type | Bipolar self-locking hal |
| Number of halls | 3 |
| Supply voltage | 5 V |
| Electrical angle | 120 ° |

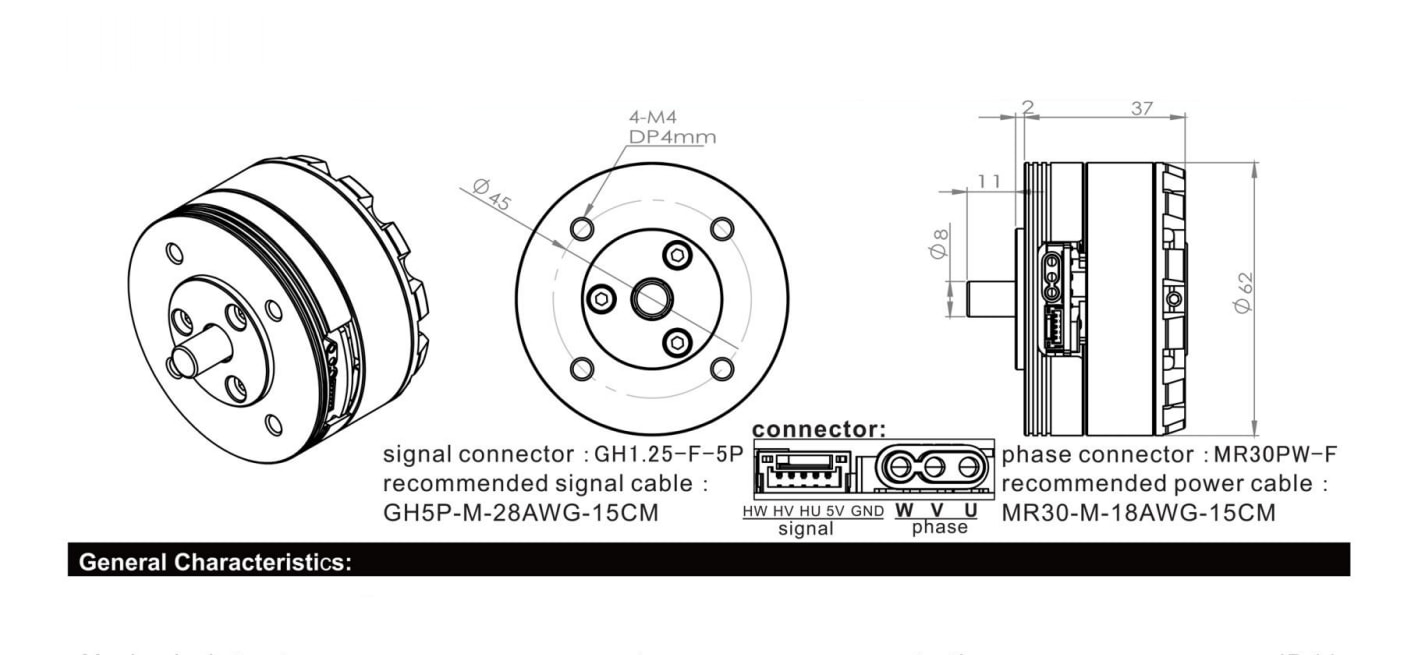

Technical illustrations
Characteristic curves
Your Choice
Selected Variant
MX5310KV100HA – 24V
Key Features
| Rated voltage: | 24 V |
| Rated torque: | 500 mN.m |
| No-load speed: | 2400 |
| Stall torque: | 1450 mN.m |
| Diameter: | 62 mm |
| Length: | 37 mm |
Selected Variant
MX5310KV100HA – 48V
Key Features
| Rated voltage: | 48 V |
| Rated torque: | 1000 mN.m |
| No-load speed: | 7200 |
| Stall torque: | 2800 mN.m |
| Diameter: | 62 mm |
| Length: | 37 mm |
