Series BL-16

Price scales

QuantityDiscountUnit price
1-90% off$2.97
10-9915% off$2.52
100+25% off$2.23

Product description

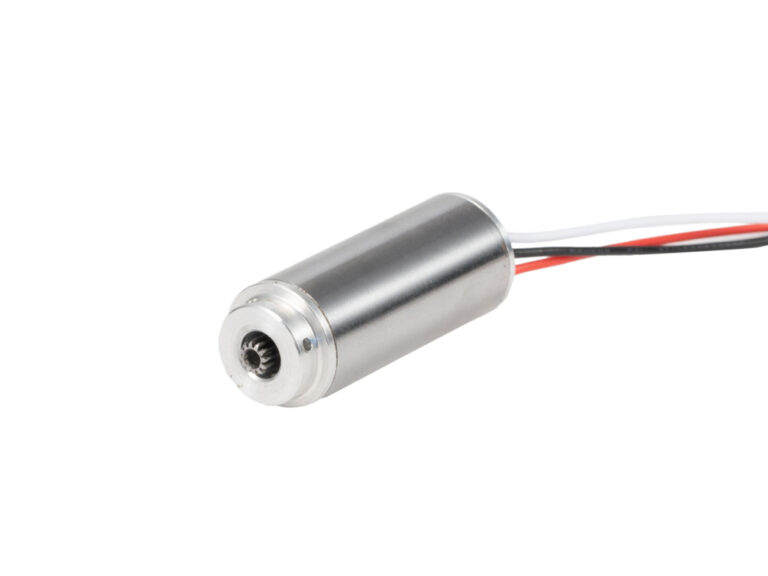

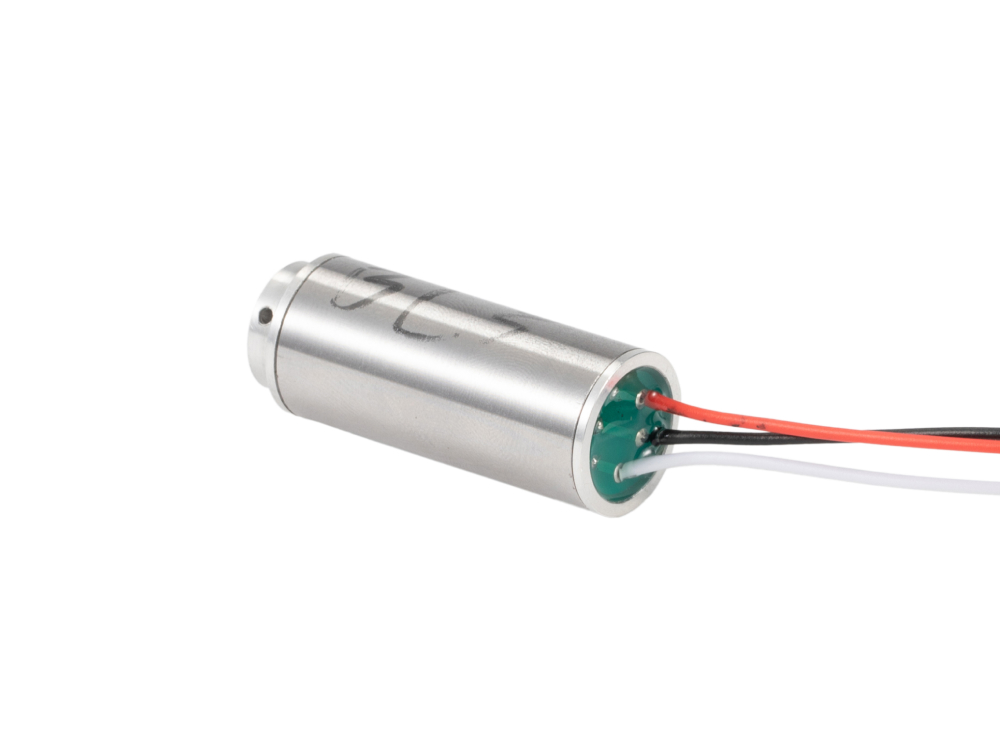

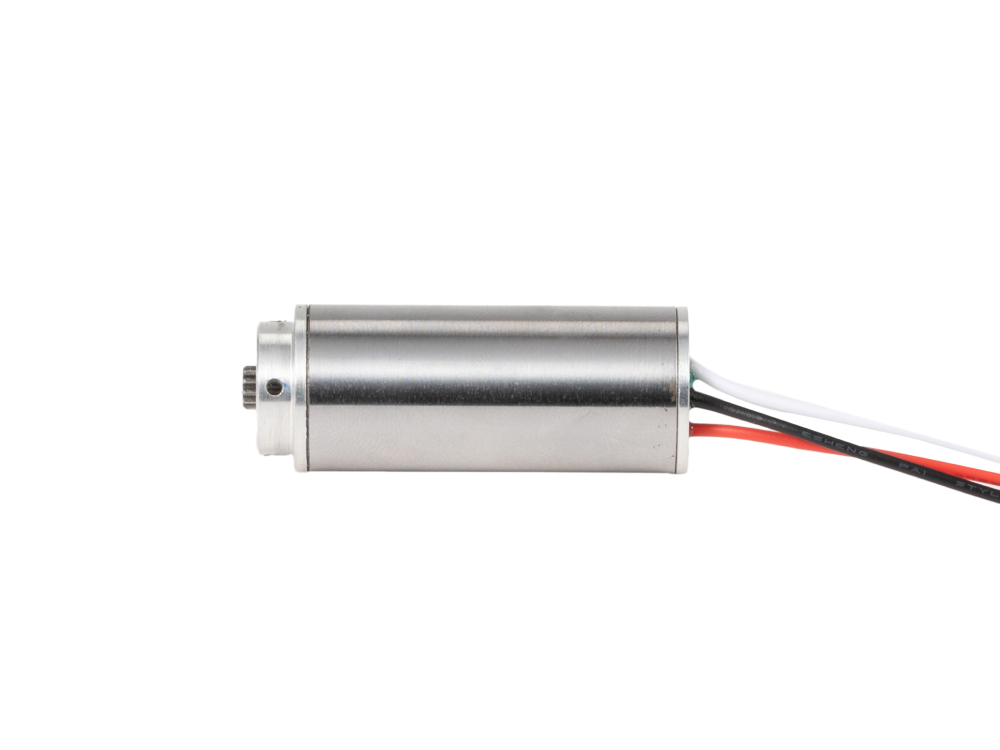

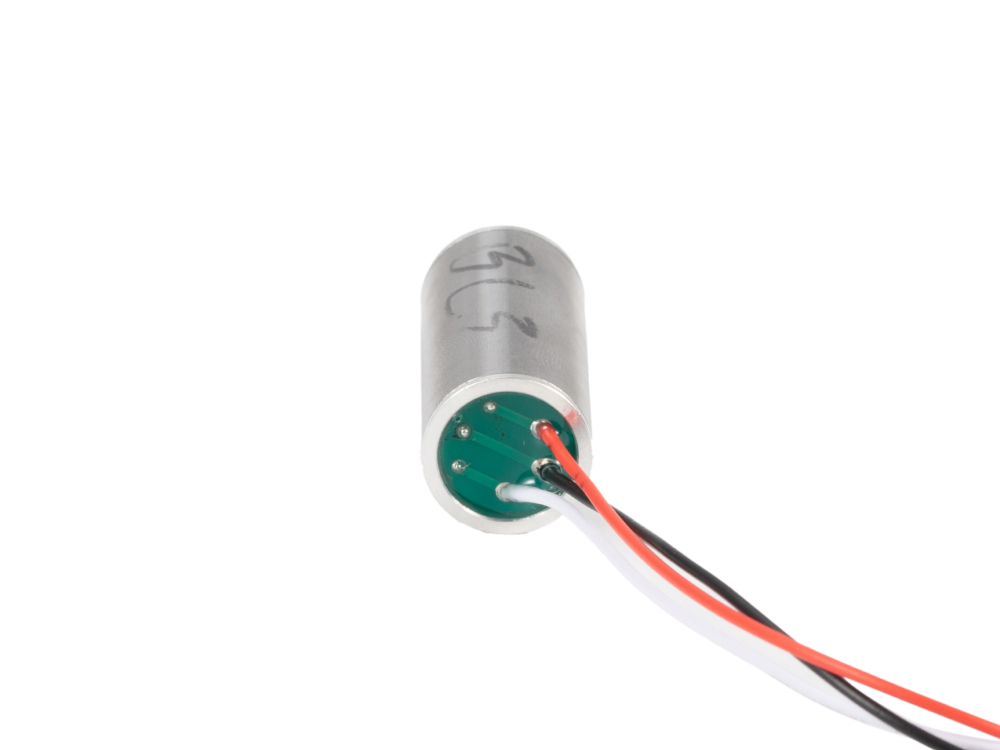

BL-16

Specifications

Value nominal voltage
Rated voltage12 V
Rated current250 mA
Rated torque27 gf.cm
Rated speed11000
Stall torque70 gf.cm
Stall current1.3 A
No-load current250 mA
No-load speed15000
Rated power3 W
Max efficiency82 %
Motor material
Housing material40 Cr
Direction of rotationelectronically reversible
Number of pole pairs8
Magnet materialNd2Fe14B
Enameled wire materialEnameled Copper Wire
Insulating paint layerPolyurethane Enamelled Wire (UEW)
Hall SensorNo
Motor ControlSensorless external driver
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan3000 hours
Value nominal voltage
Rated voltage12 V
Rated current400 mA
Rated torque25 gf.cm
Rated speed8000
Stall torque60 gf.cm
Stall current1.2 A
No-load current230 mA
No-load speed10000
Rated power2 W
Max efficiency82 %
Motor material
Housing material40 Cr
Direction of rotationelectronically reversible
Number of pole pairs8
Magnet materialNd2Fe14B
Enameled wire materialEnameled Copper Wire
Insulating paint layerPolyurethane Enamelled Wire (UEW)
Hall SensorNo
Motor ControlSensorless external driver
Electrical characteristics
Terminal resistance
Terminal inductance
Torque constant
Speed constant
Back-EMF constant
Rotor inductance
Rotor inertia
Mechanical characteristics
Weight
Noise Level @ 30cm
Noise Level @ 50cm
Operating temperature range-30℃-80℃
Working Lifespan3000 hours

Technical illustrations

Dimensional Drawing

Characteristic curves
